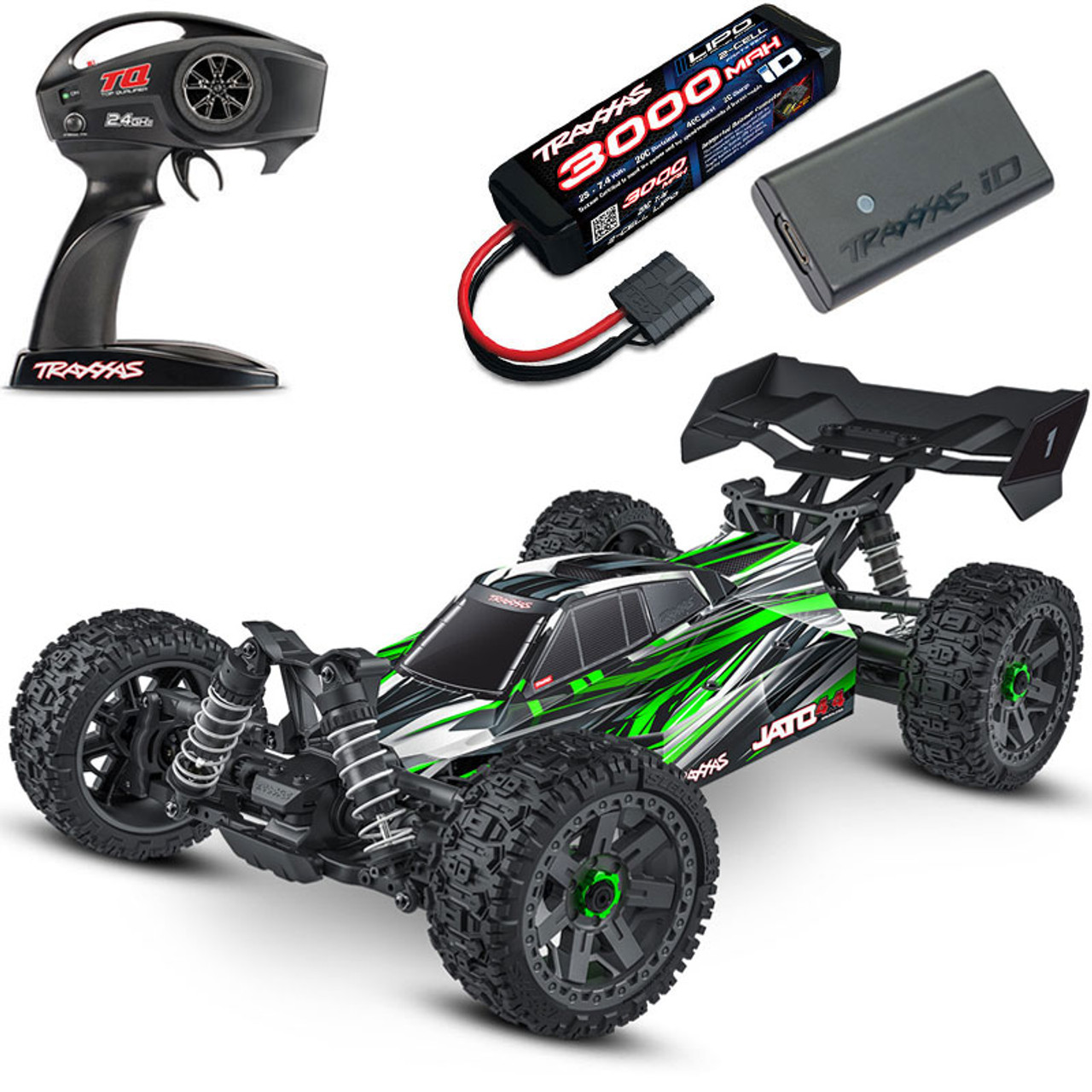

LIMITED TIME OFFER - FREE TRAXXAS BATTERY AND CHARGER - $59.95 Value
INCLUDED FREE ITEMS
TRA2827X - 3000mAh 7.4v 2-CELL LIPO BATTERY
TRA2920 - USB-C 2s LIPO iD CHARGER

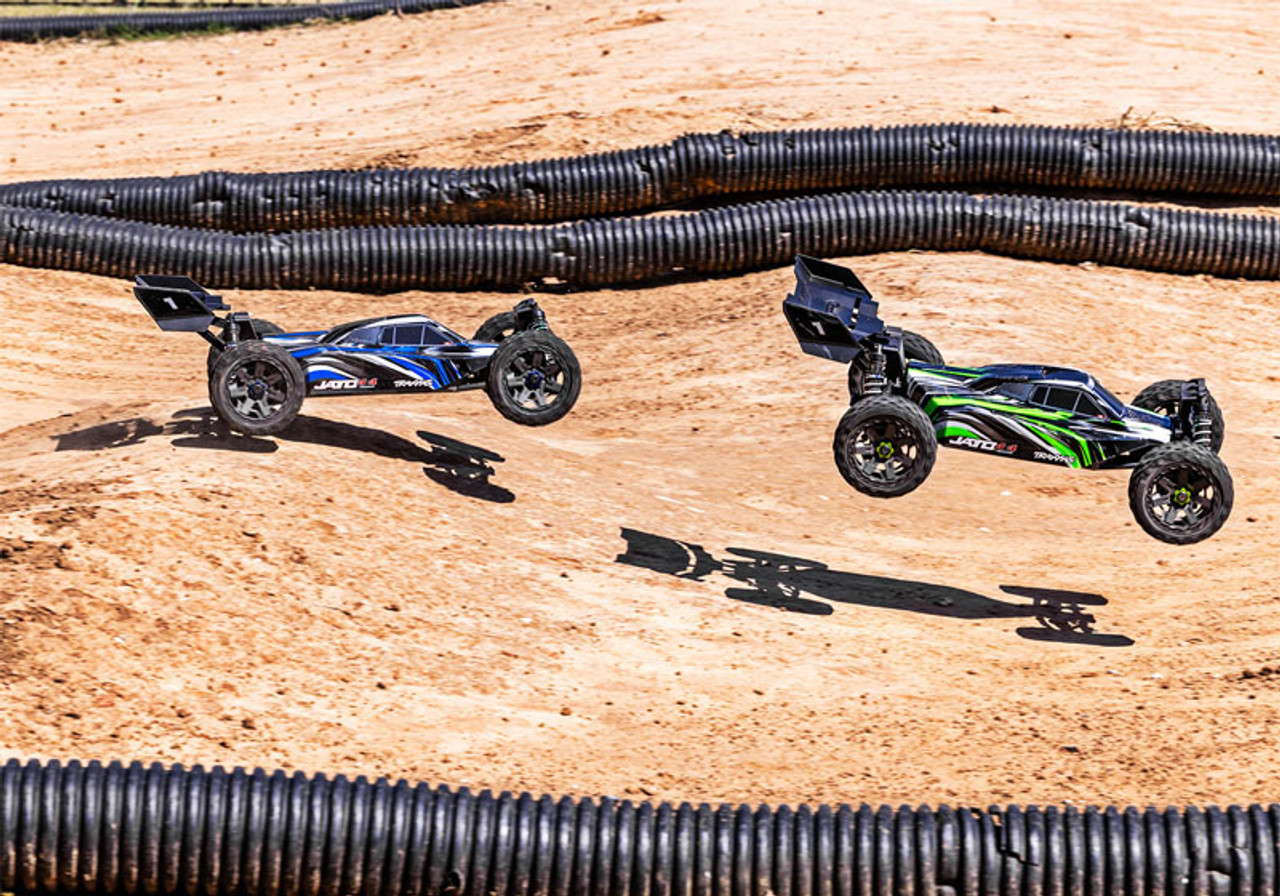

This is the Traxxas Jato 4X4 Brushless Ready-to-Run Waterproof Radio Controlled 1/8 Scale Racing Buggy with Factory-Installed Extreme HD Kit, with TQ 2.4 GHz 2-Channel Radio System, BL-2s Speed Control, and Clipless Painted Body.
Jato 4X4
Race-Inspired Handling. Built Traxxas Tough.
Jato 4X4 delivers agility and toughness in a platform that is both fun and rewarding to drive. The low-CG chassis uses performance-optimized suspension geometry and optimal weight distribution to deliver quick turn-in and precise handling dynamics. As a result, Jato 4X4 handles with the precision of a race buggy and the durability of the Traxxas' toughest off-road trucks.

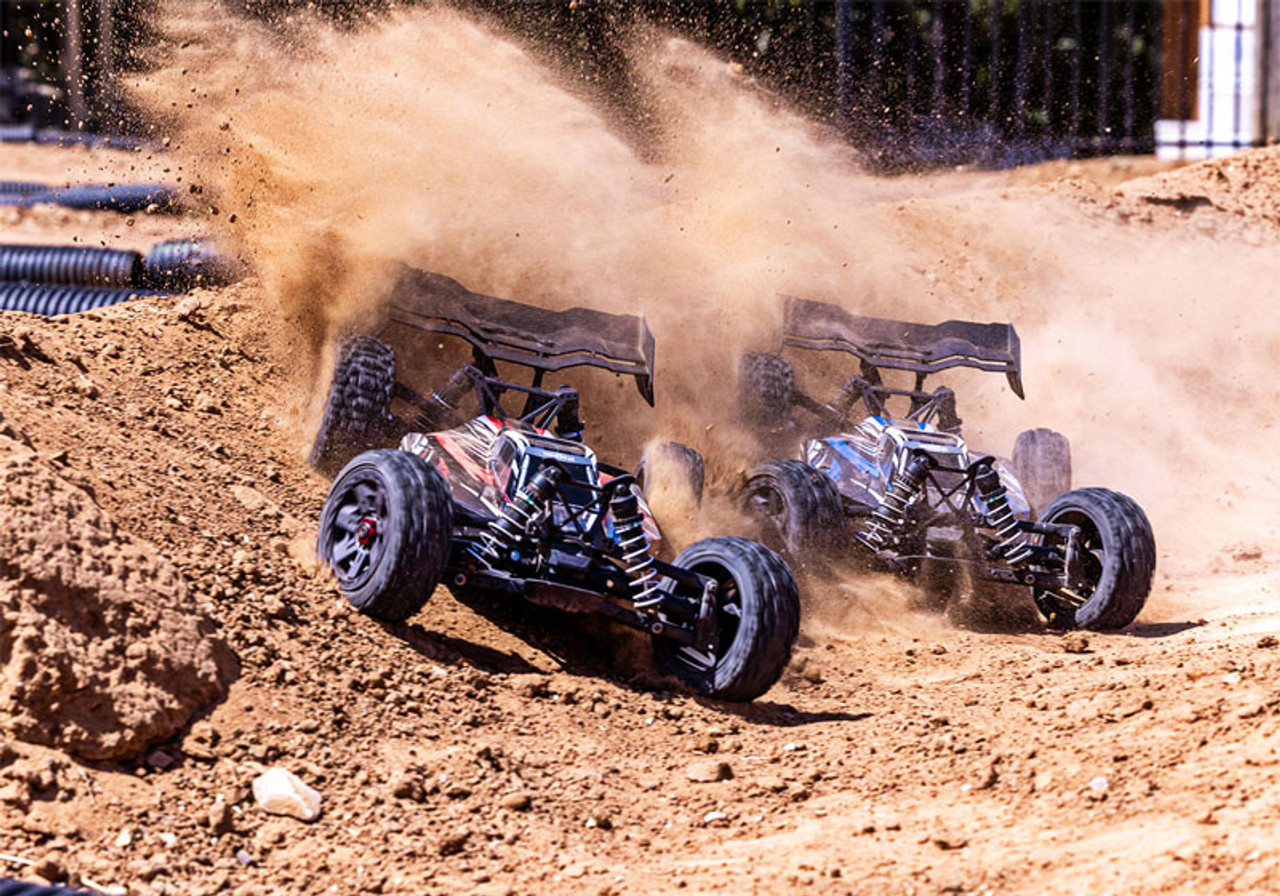

Track-Ready Handling
Jato 4X4 sits low and wide, concentrating its weight below the driveshafts for exceptional handling and perfect weight distribution. Extra-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4’s new Sledgehammer buggy tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for ultra-flat cornering and game-changing on-track performance.
BL-2s Brushless System
The BL-2s brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Jato 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 Kv is long-lasting and requires virtually no maintenance.
Next-Level Toughness
Factory-installed Extreme Heavy Duty Upgrade components give Jato 4X4 the superior strength and durability normally associated with Traxxas’ toughest off-road trucks. An ultra-rigid T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty driveshafts transfer every ounce of the motor’s torque to the wheels with unsurpassed strength.

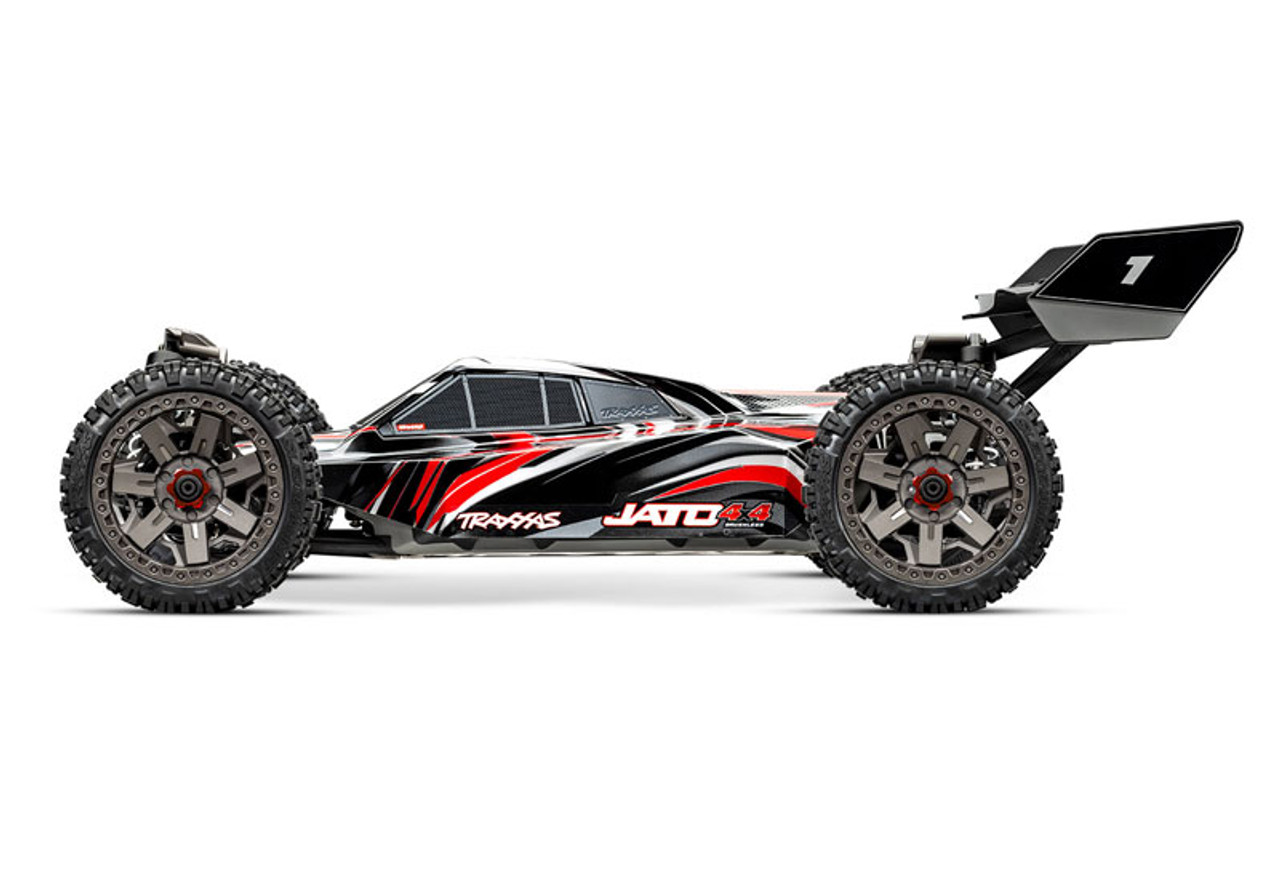

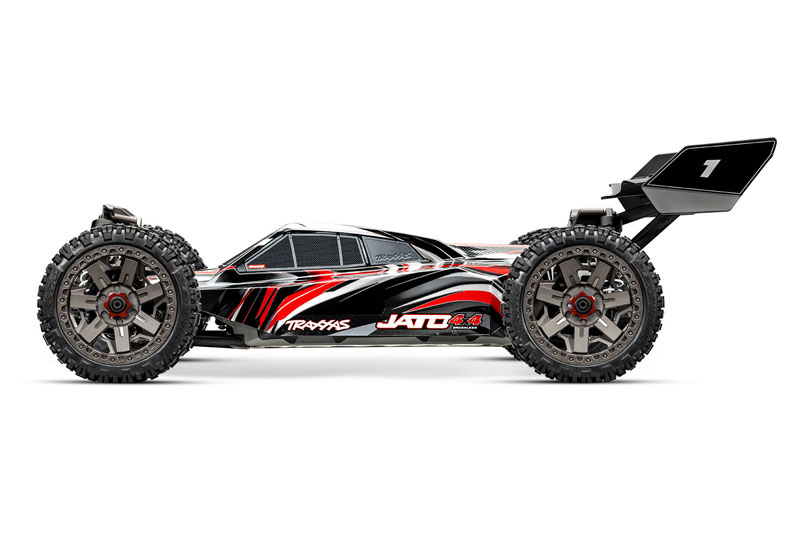

Clipless Buggy Body
Jato 4X4’s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 incorporates the high-downforce wing from Sledge® to keep its chassis planted with rugged rollover protection as an added benefit.
Features
- Clipless Body
- Holds tight for intense action
- Quick and easy removal
- High-downforce wing
- Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Heavy duty one-piece camber & toe links
- Maxx-duty driveshafts
- Oversize diameter
- 6 mm axles
- 17 mm hex hubs
- Aluminum wheel nuts
- TQ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- BL-2s Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- 3300 Kv Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv

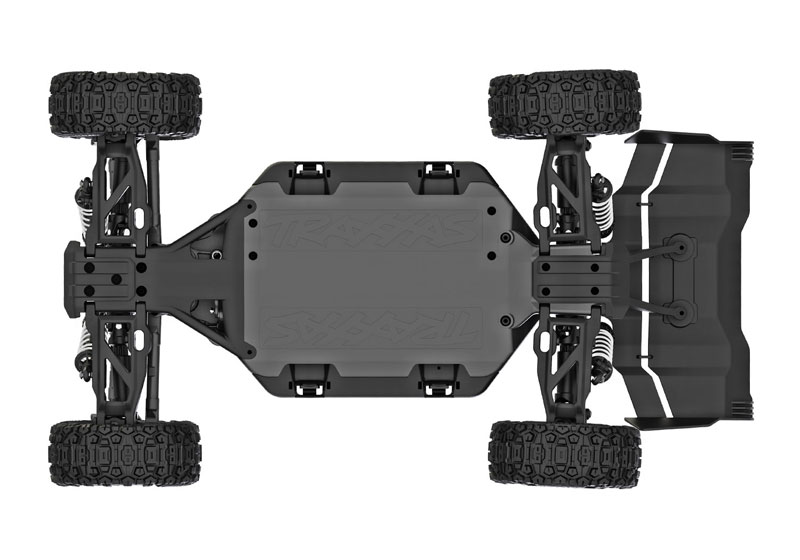

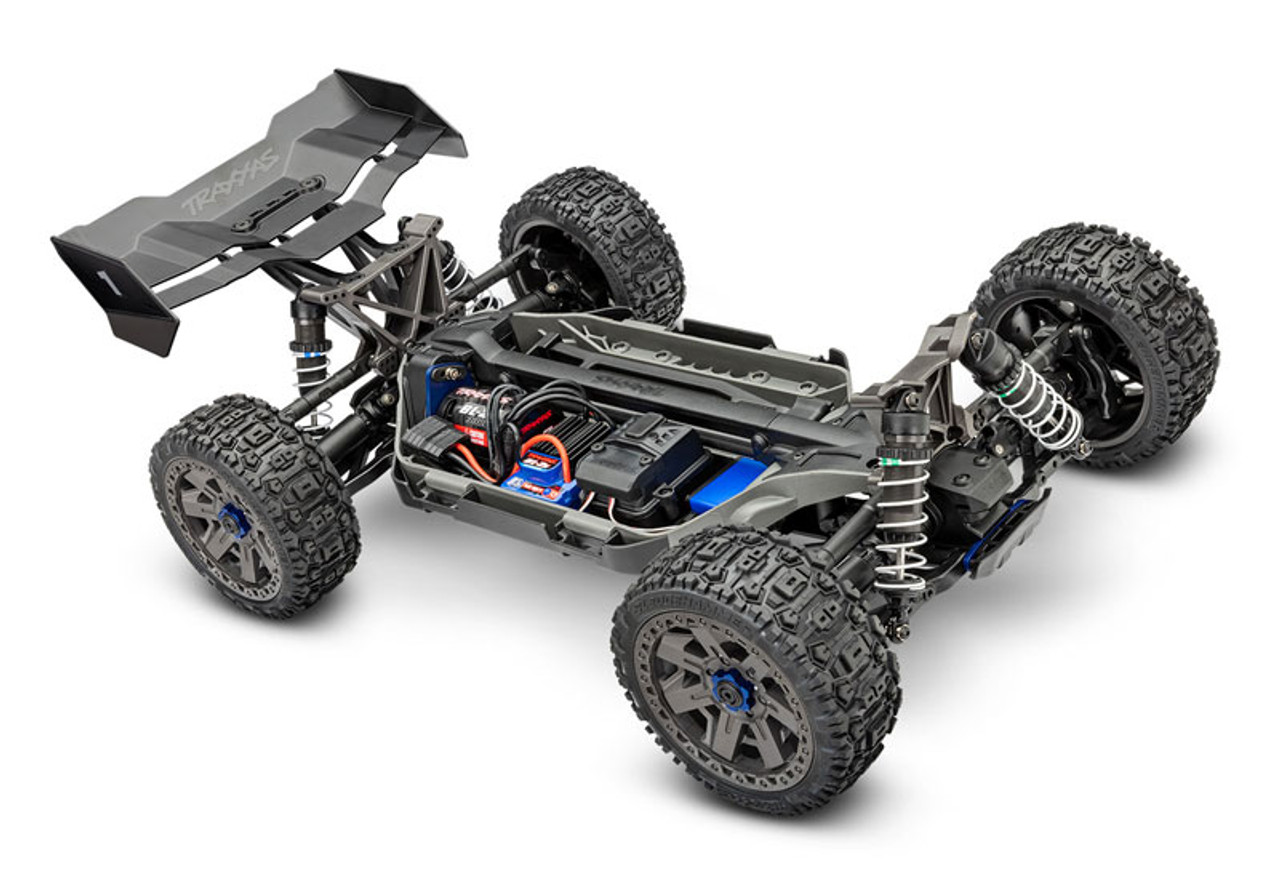

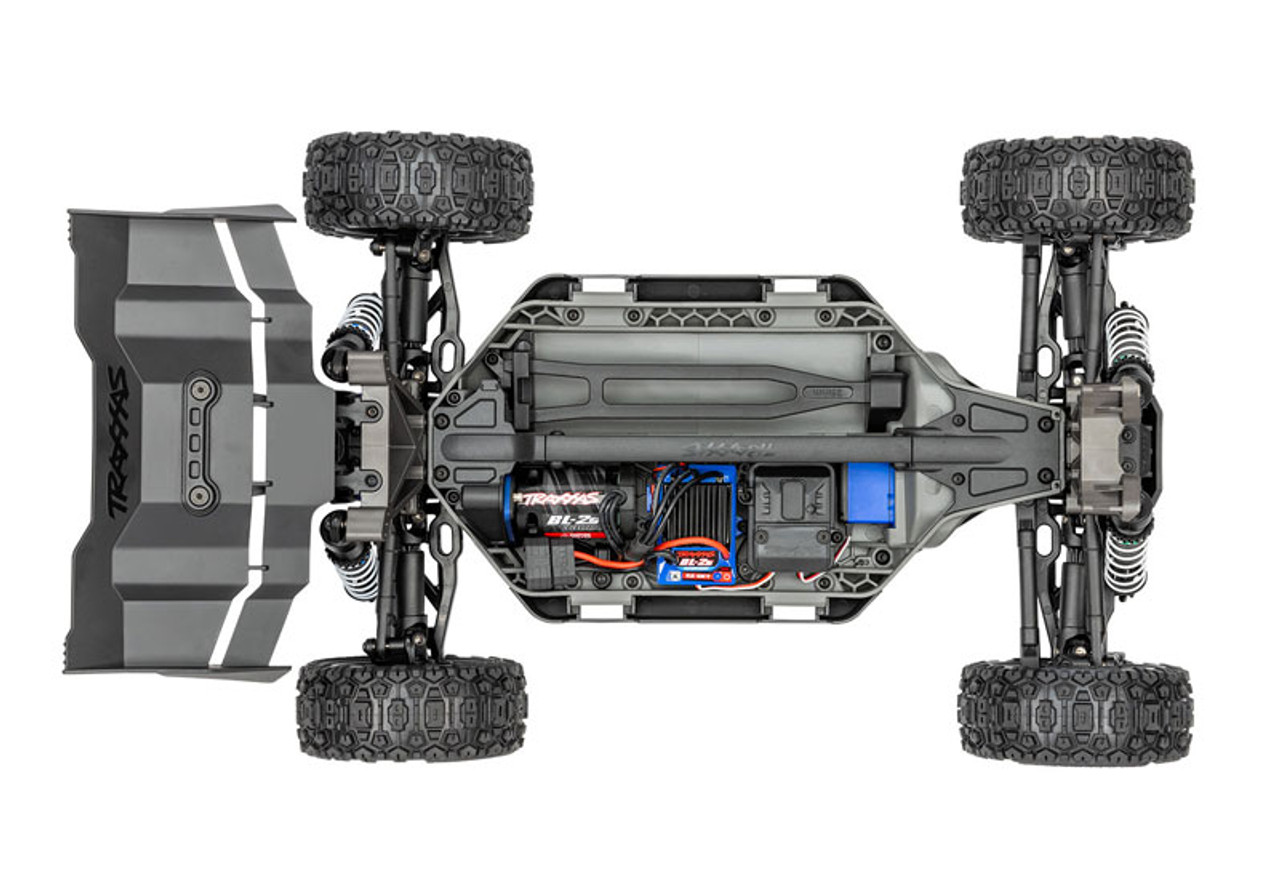

- Chassis
- T-Bar chassis stiffener
- Modular composite tub design
- Secure battery hold-down latch
- Low-CG design

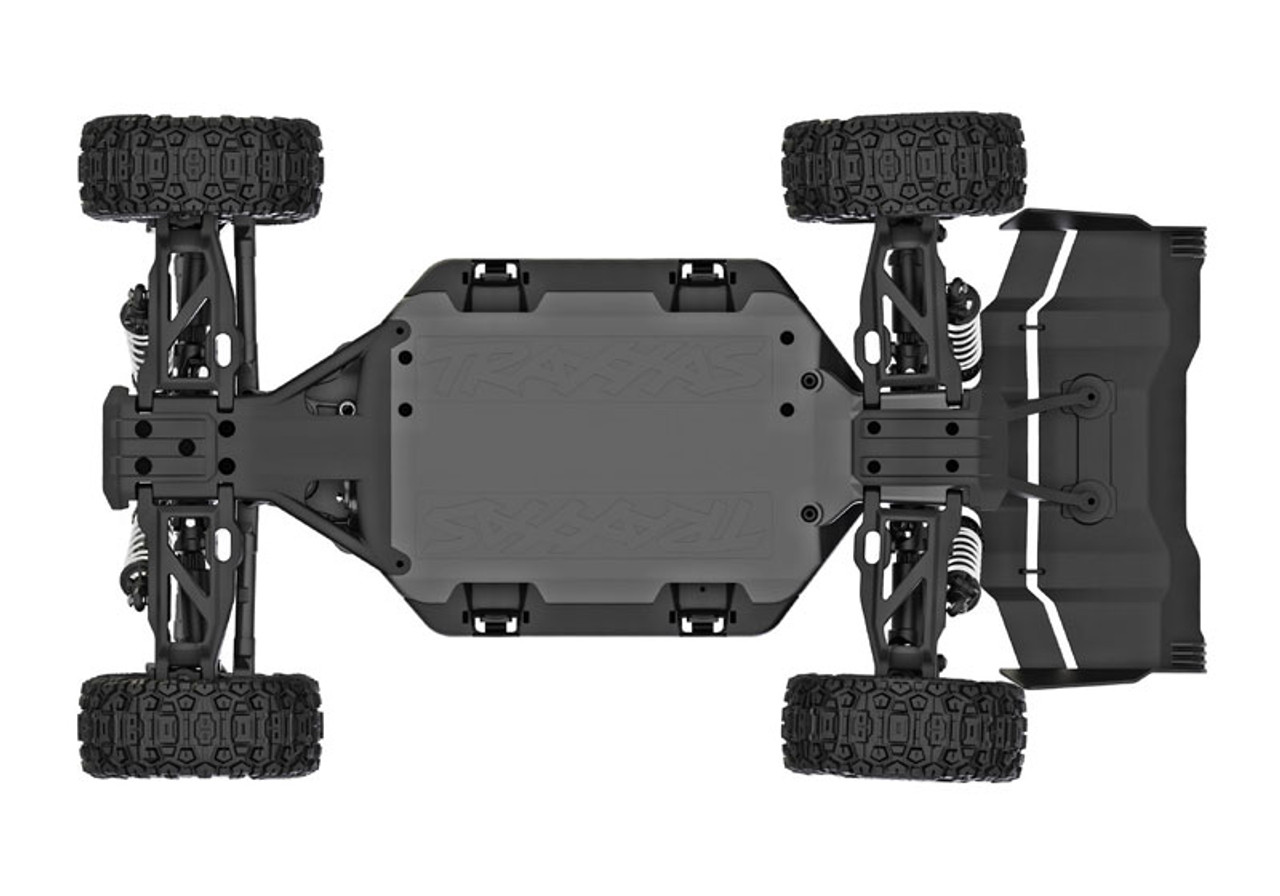

- High-clearance skid plate
- Suspension
- Heavy duty shock towers
- Reinforced shock mounts
- Double-shear camber link connections
- Heavy duty suspension arms
- Oil-filled GTR shocks
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- White powder-coated springs
- Driveline
- Full-time shaft-driven 4-wheel drive
- Sealed steel gear front and rear differentials
- Heavy-duty slipper clutch
- Large 32-pitch spur gear
- Wheels and Tires
- 3″ gray buggy wheels
- Sledgehammer tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating

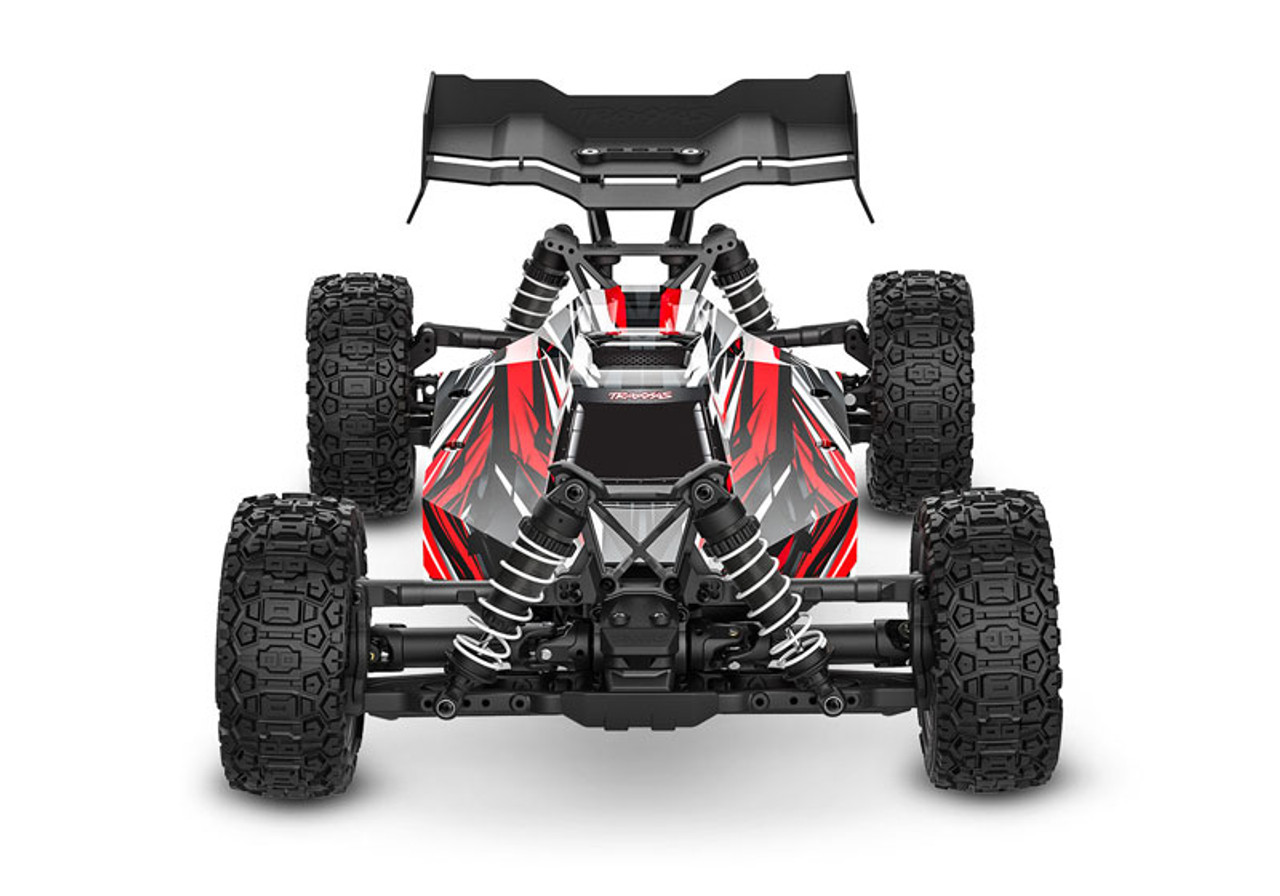

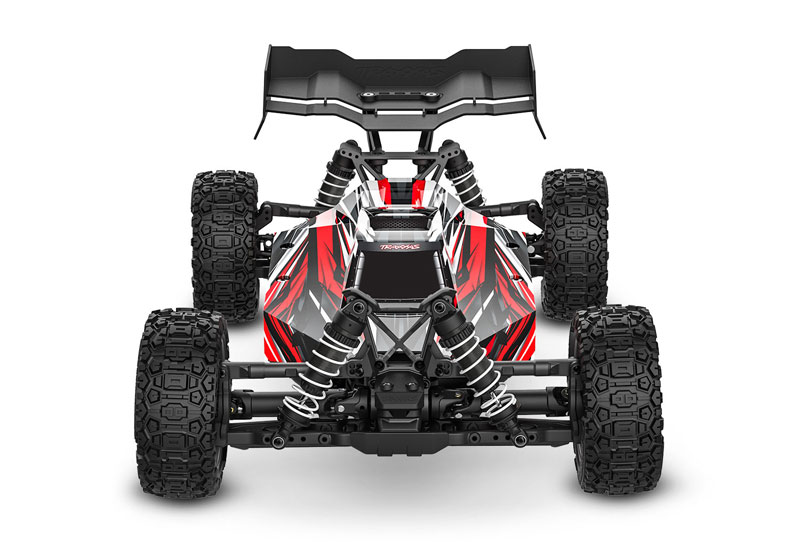

High-Downforce Wing
Jato 4X4’s sleek, low-profile cab forward body incorporates Sledge's high-downforce wing for extra high-speed stability. Wedged side pods provide additional front downforce for increased steering response.
3'' Buggy Wheels with Sledgehammer Tires
Jato 4X4 rides on large 3'' buggy wheels with new Sledgehammer buggy tires for game-changing stability and control. The Sledgehammer’s wide, open-block tread design won’t clog up with dirt or debris for superior traction on all types of terrain. The wheels' 17 mm hub design creates a large contact area for extra grip to resist rounding.

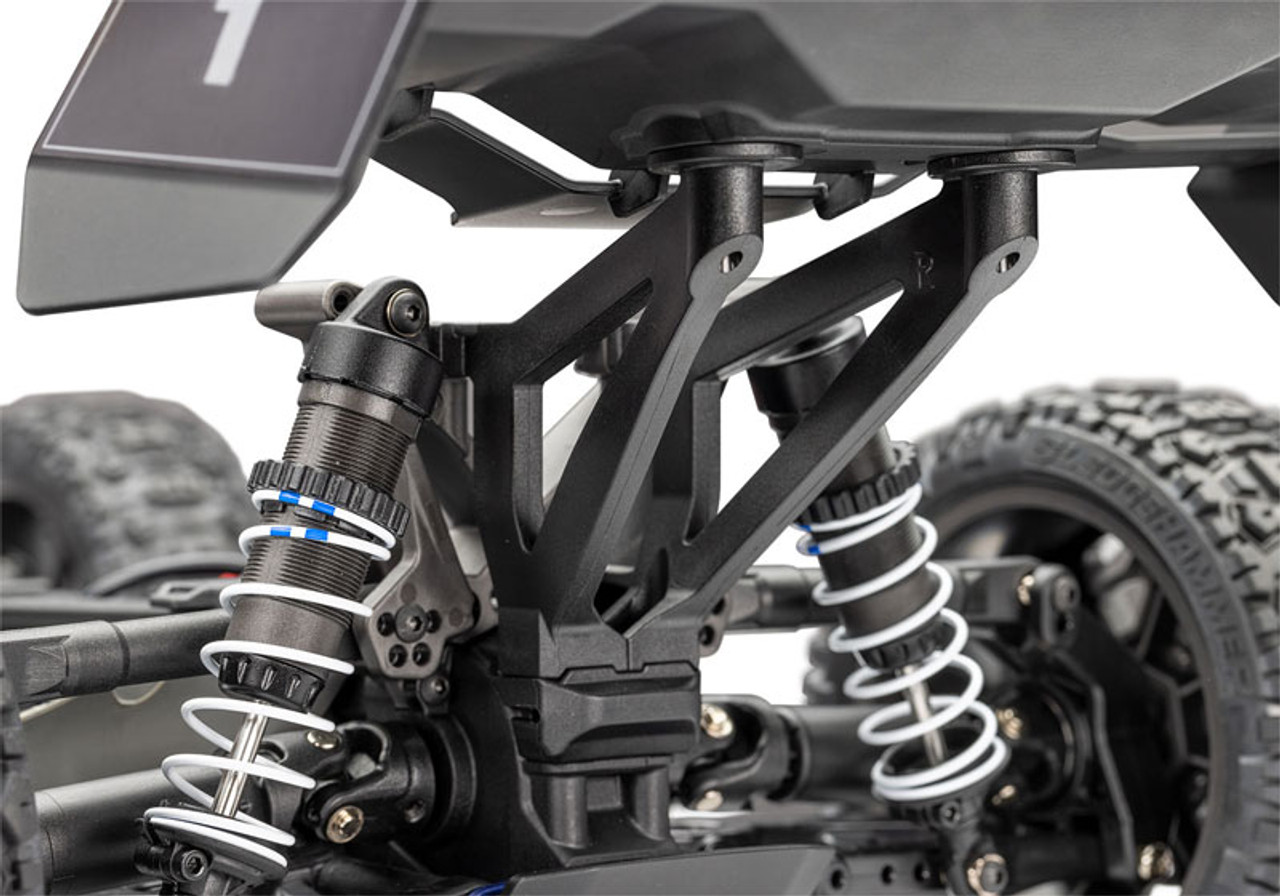

Heavy Duty Shock Towers
Jato 4X4’s new heavy duty shock towers are beefed up with double-shear link mounts and extra material to withstand rollovers without incident. The front shock caps are protected under reinforcing ridges and the molded wing locks directly into the rear tower for extra rigidity.
Fixed Gear Adapter
A fixed gear adapter take the guesswork out of setting your gear mesh with five preset gearing positions. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.

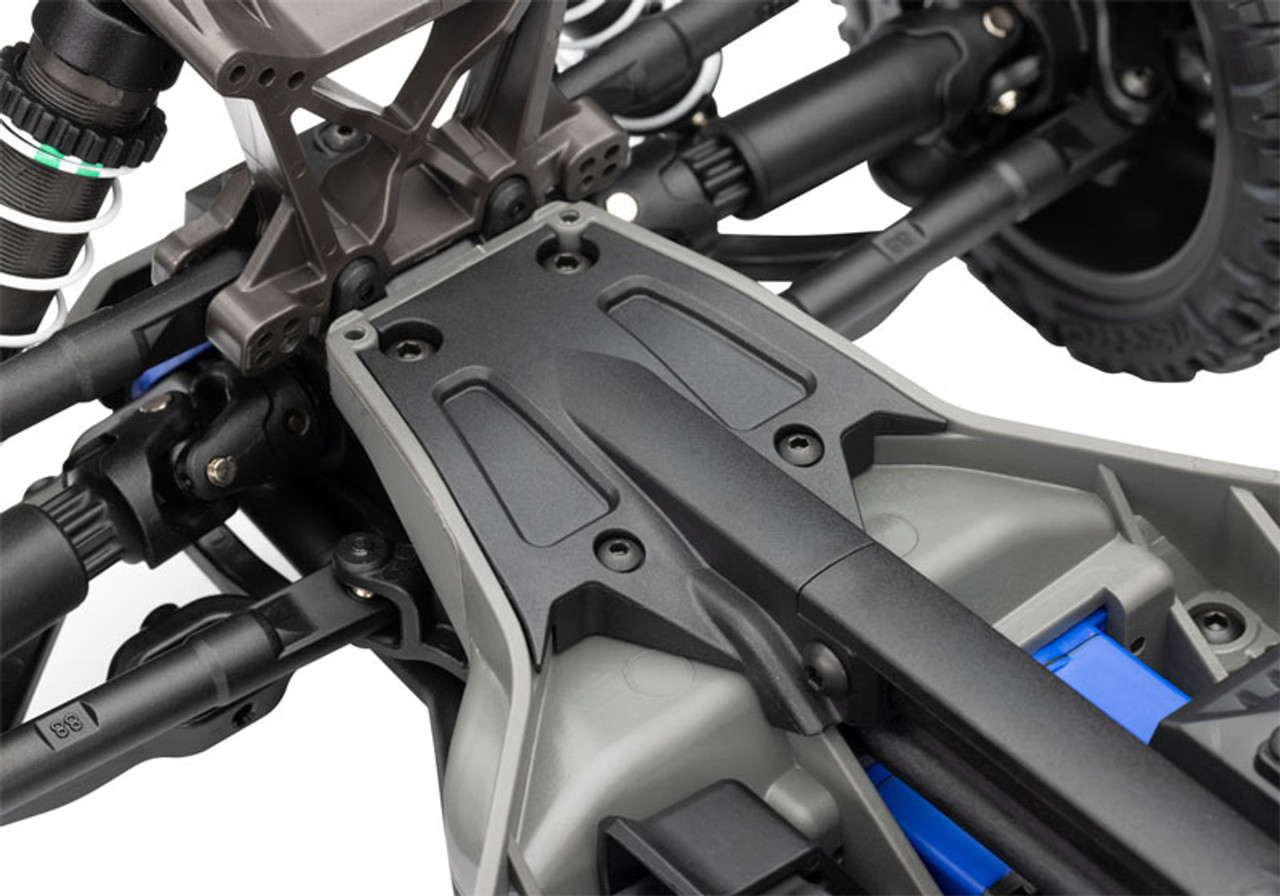

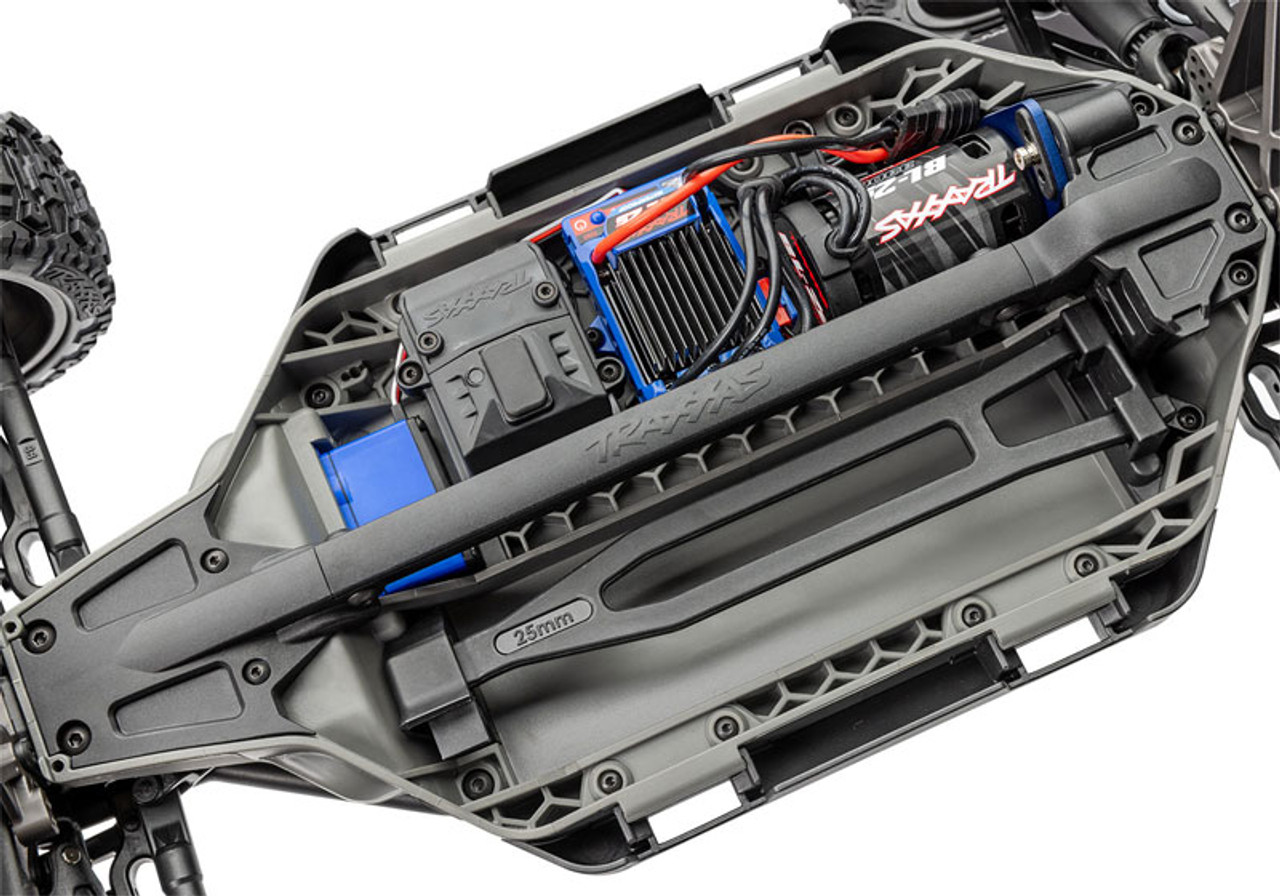

T-Bar Chassis Stiffener
Jato 4X4 borrows a page from Sledge’s top-spec engineering by incorporating its unique T-Bar chassis stiffener design. The T-Bar delivers cross-sectional stiffness no round tube can match.

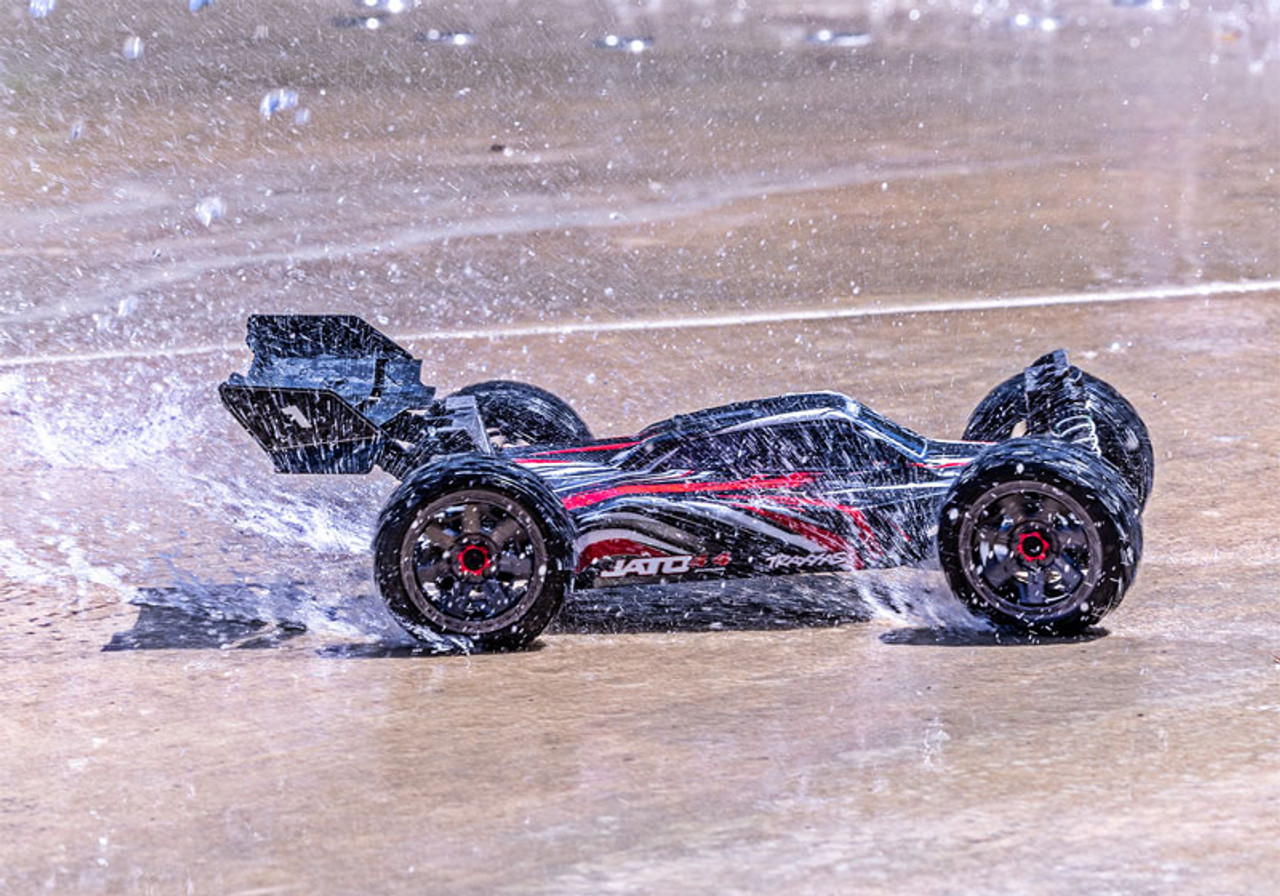

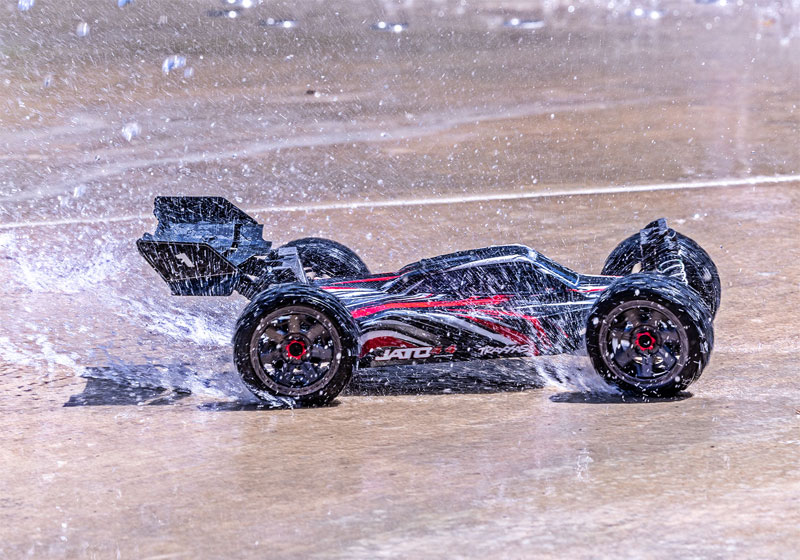

Waterproof Receiver Box
A waterproof receiver box keeps the receiver safe and dry while still allowing easy access for maintenance. The antenna and servo wires route neatly through a patented water-tight seal for true all-weather fun.
3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Digital Steering Servo
Agile handling requires a steering servo that’s both strong and fast. The included 2075 digital high-speed high-torque servo features ball bearings for precise control and quick reflexes.
Dual Bellcrank Steering with Servo Saver
The dual-bellcrank design pivots smoothly even in the harshest conditions. An integrated cam-type servo saver protects the steering servo from crash impacts without sacrificing steering precision.

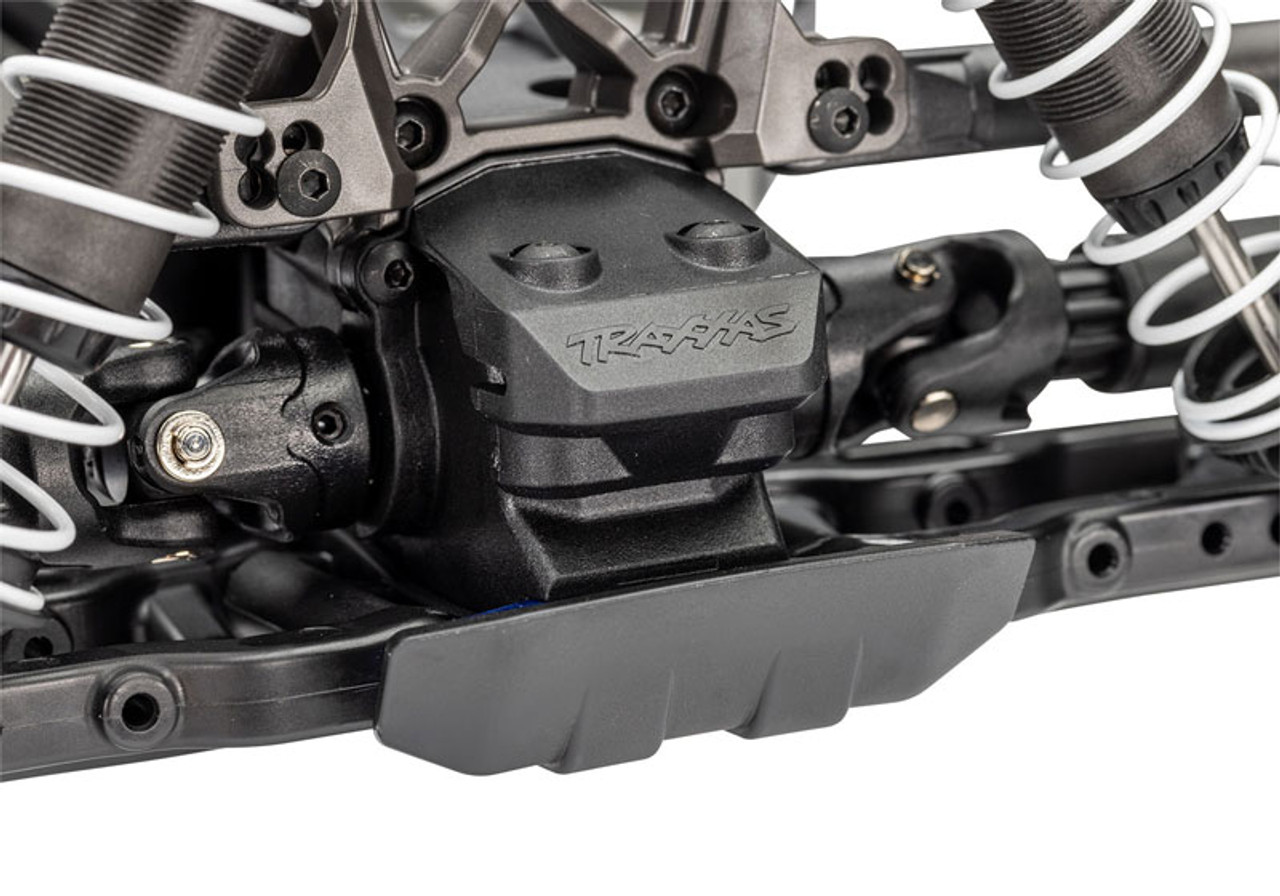

Aerodynamic Bulkhead Cover
Jato 4X4’s aerodynamic bulkhead cover incorporates mounts for the optional sway bar (sold separately). Low-profile skid plates in the front and rear give Jato 4X4’s suspension maximum down travel while reducing the risk of snagging and scraping.

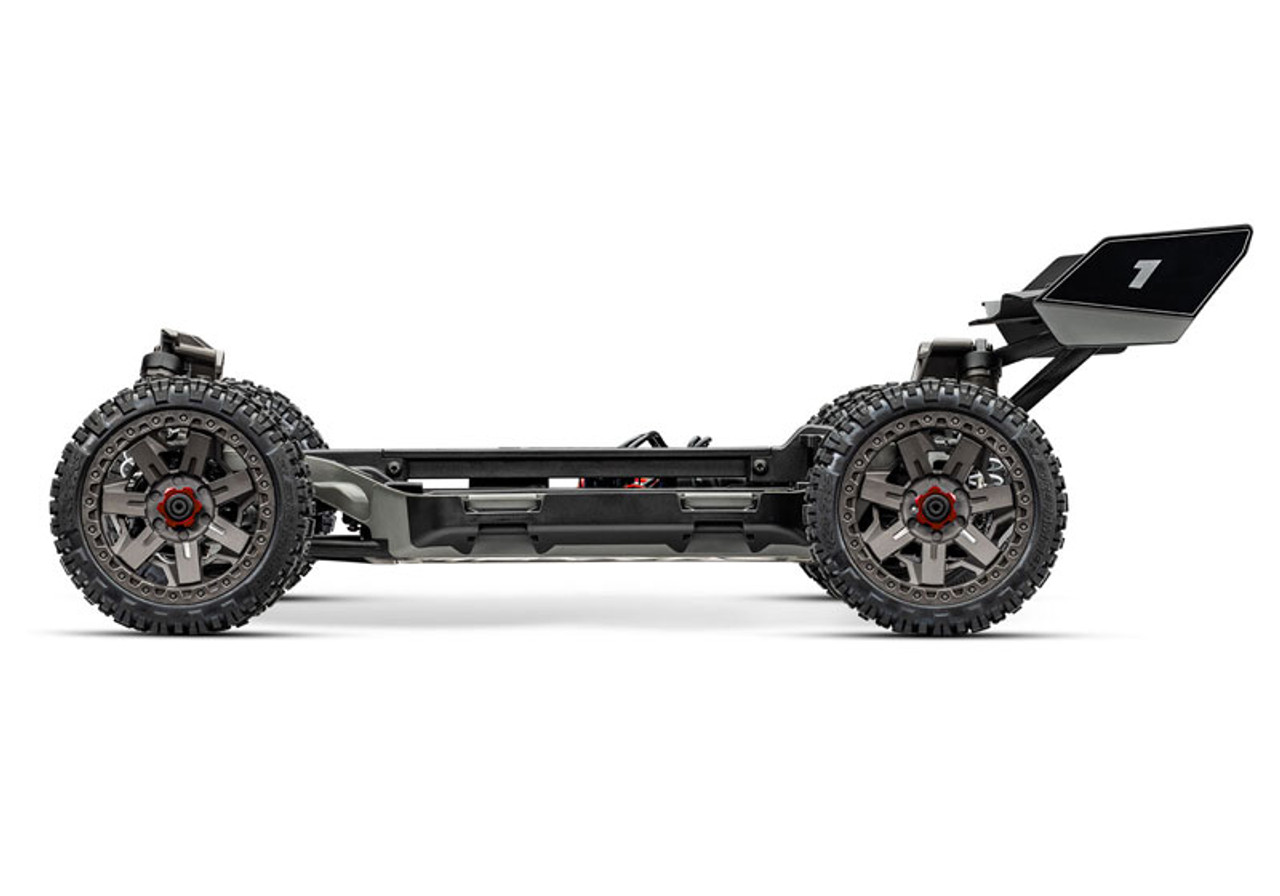

Long-Travel Suspension
Jato 4X4 uses XX-long GTR shocks at all four corners for ultra-plush suspension travel to swallow up bumps and deliver incredible control. Performance-optimized suspension components provide maximum articulation without binding or interference.
Heavy Duty Slipper Clutch
A heavy duty slipper clutch uses alloy pressure plates and high-temperature aluminum pads for superior power handling. The slipper clutch delivers equal power distribution front to rear for instant throttle response through the drive system and aggressive four-wheel-drive grip.
Specifications
Length: 20.4 inches (517 mm)
Front Track: 12 inches (305 mm)
Rear Track: 12 inches (305 mm)
Ground Clearance: 1.02 inches (26 mm) (center)
Weight (no battery): 5.2 pounds (2.36 kg)
Height (overall): 7 inches (179 mm)
Wheelbase: 12.6 inches (320 mm)
Shock Length (front): 3.98 inches (101 mm) - XX-long
Shock Length (rear): 3.98 inches (101 mm) - XX-long
Speed Control: BL-2s electronic speed control
Motor (electric): BL-2s 3300 Kv sensorless brushless
Overall Drive Ratio: 12.80:1
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4WD
Steering: Dual-bellcrank with integrated servo saver
Tires: Sledgehammer with foam inserts
Tire Diameter: 4.5 inches (114 mm) (front and rear)
Wheels (front/rear): 3″ Gray buggy wheels
Wheel Diameter: 3″ inches (78 mm)
Radio System: TQ 2.4 GHz (2-channel)
Servo: Waterproof digital 2075 servo (125 oz-in torque)
Skill Level: 1
Battery Compartment (L/W/H): 165 mm x 50 mm x 23/26 mm
Requires
(4) AA Batteries for Transmitter
USB-C Charging Cable and Block**
**TRA #2920 - Full charging output requires a 45 watt or greater power supply like the Traxxas 2912 and high-quality USB-C cable like the Traxxas 2916.
