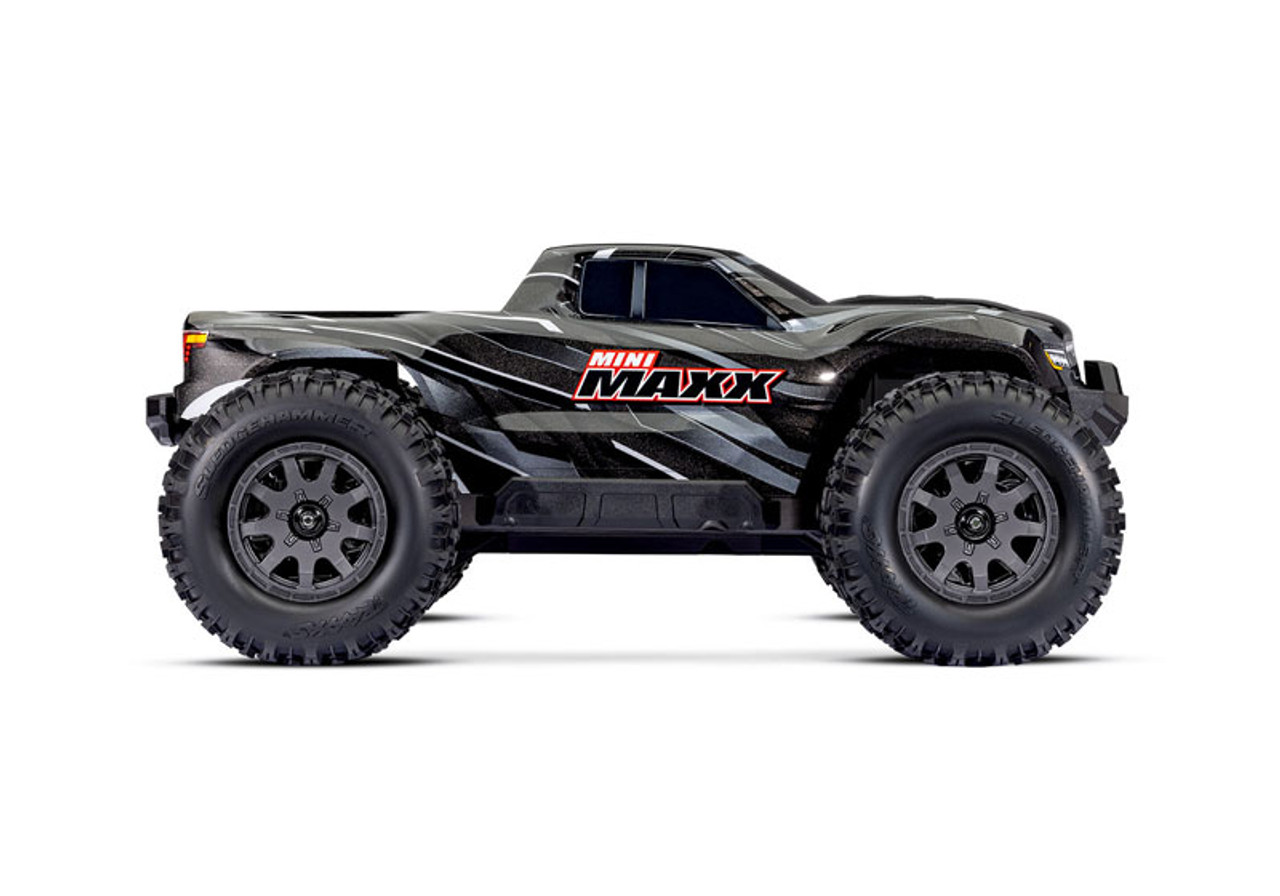

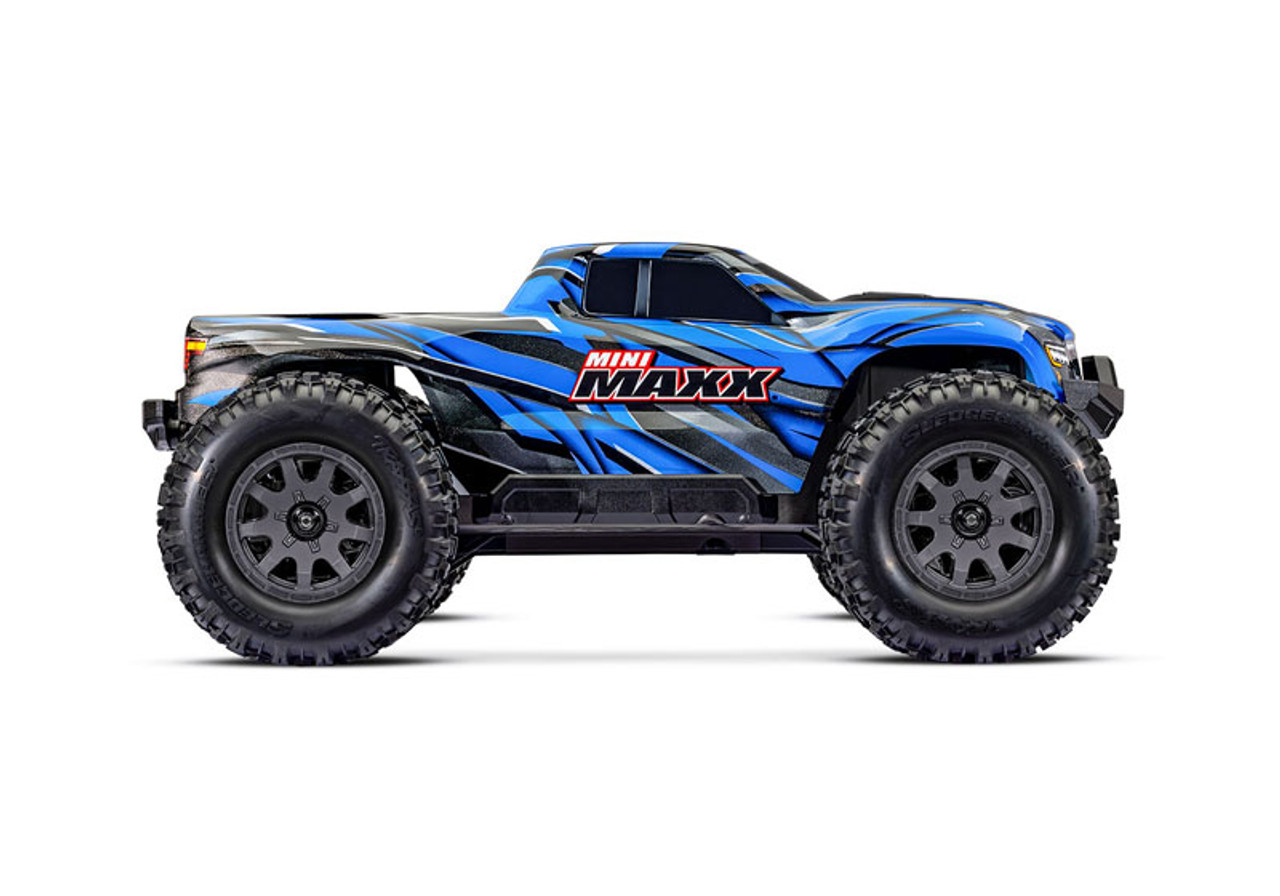

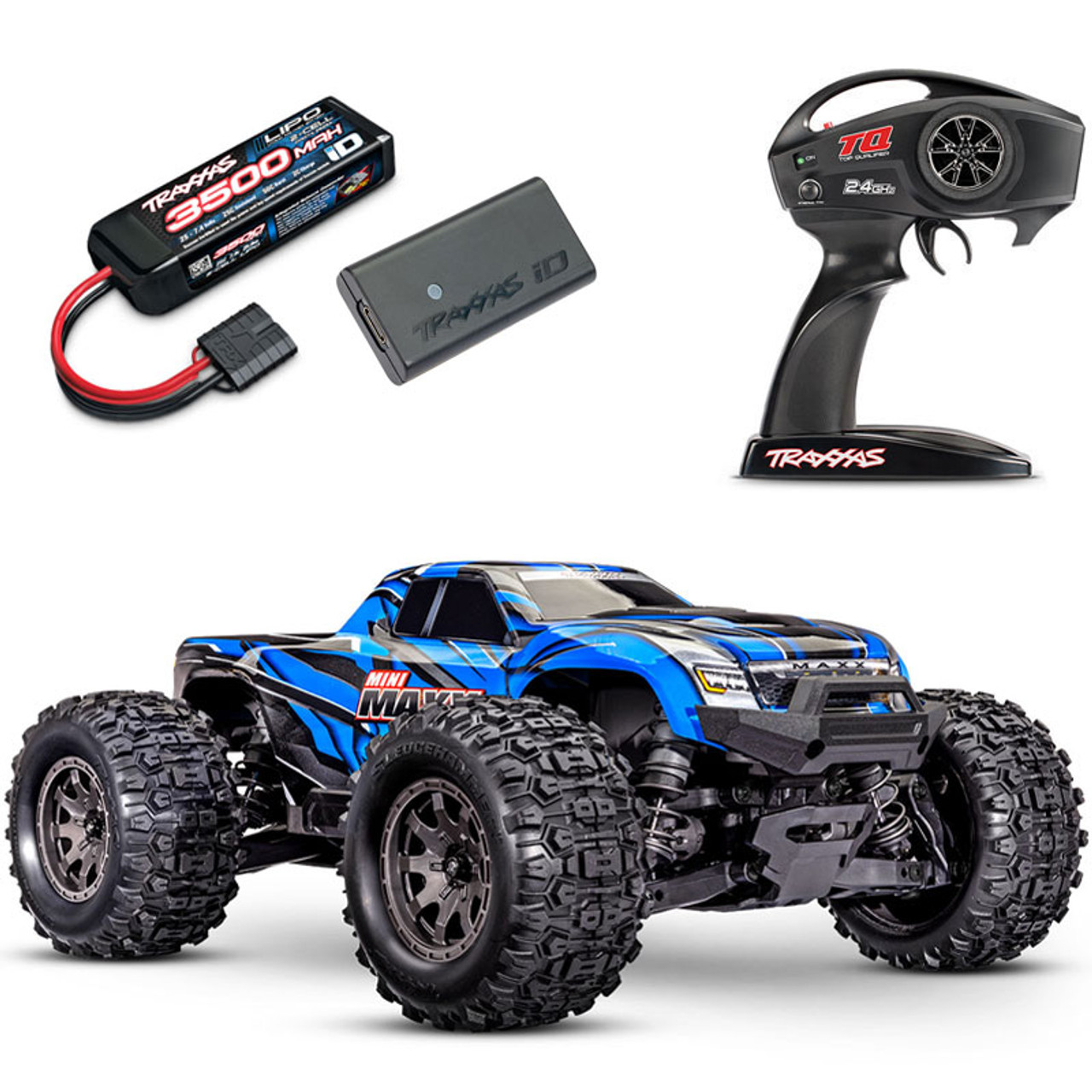

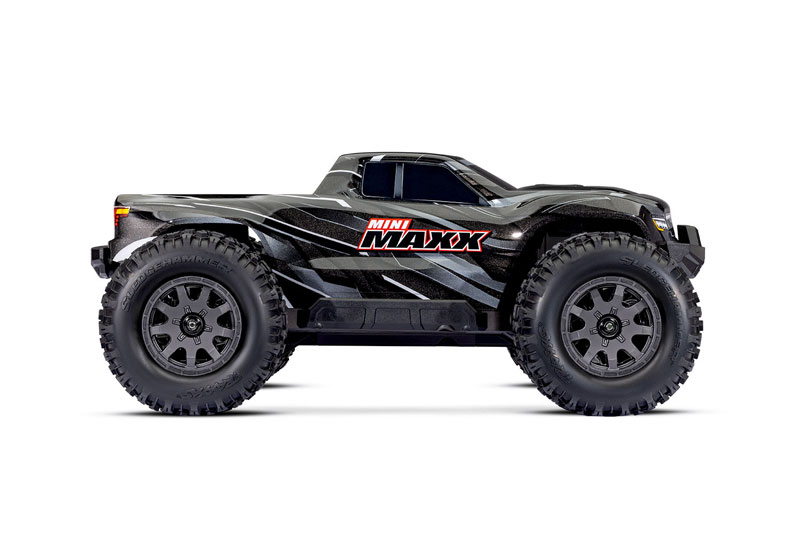

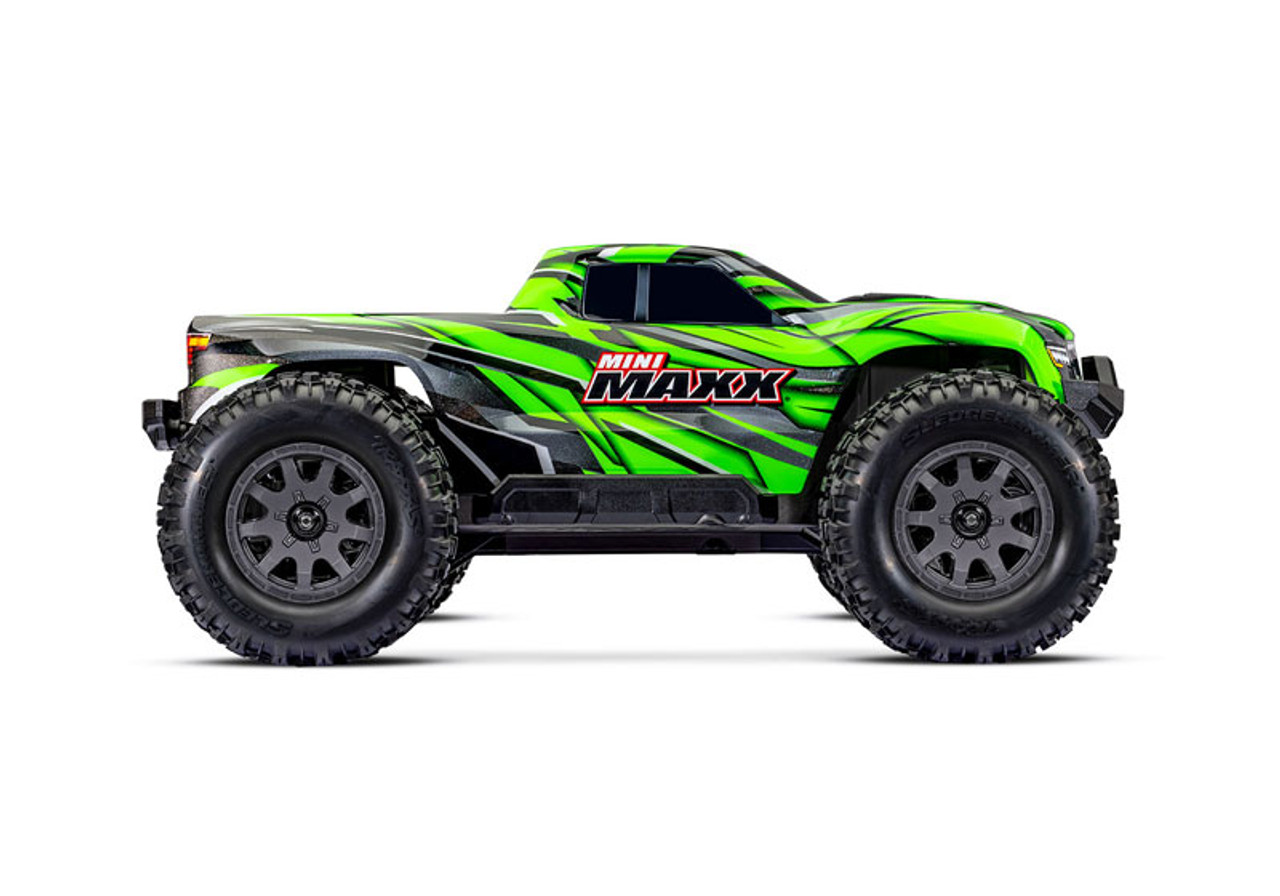

This is the Traxxas Mini Maxx 4x4 Brushless Ready-To-Race Waterproof Radio Controlled Monster Truck with TQ 2.4 GHz Radio System, BL-2s Brushless Power System, 2-cell LiPo Battery, 2-amp USB-C Charger, and Clipless Painted Body.

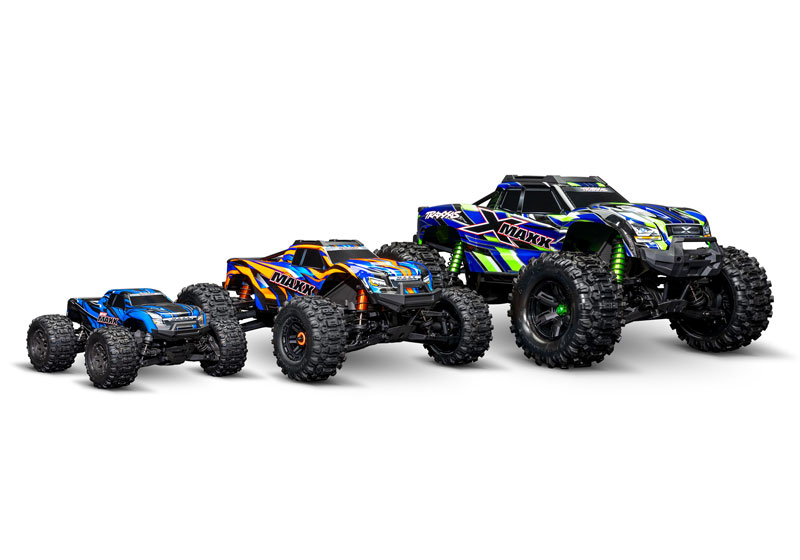

MINI MAXX - A New Way to Experience Maxx Fun
Overbuilt and over-the-top, the all-new Mini Maxx captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx performance. Mini Maxx is the perfect, take-anywhere size, delivering 30+ mph brushless speed and legendary Maxx toughness that slides easily into a backpack.
Maxx Performance
Mini Maxx does what the others can’t, in a fast, fun, and compact form that’s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It’s a whole new way to experience Maxx-level fun in a powerful machine that continues the Maxx legacy for speed and absolute toughness.
1/10 Scale Power System
The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Maxx, BL-2s power punches well above its weight for lightning-quick acceleration and 30+ mph top speed.

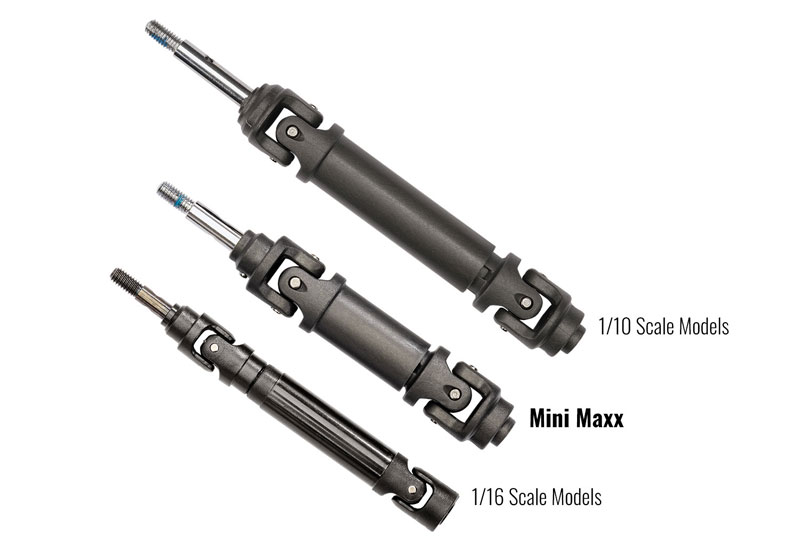

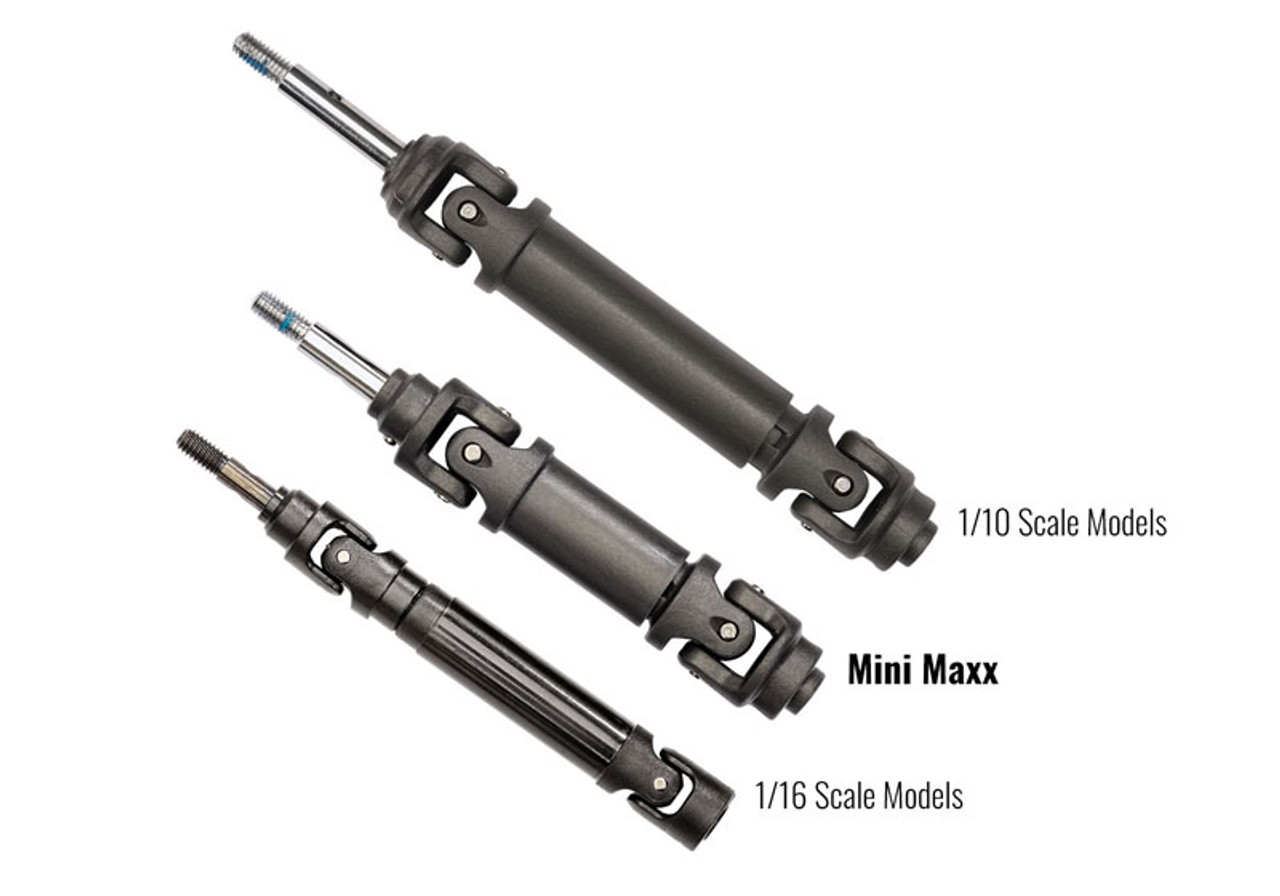

1/10 Scale 4X4 Driveline
Mini Maxx is engineered to a higher standard with 1/10 scale 4X4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.

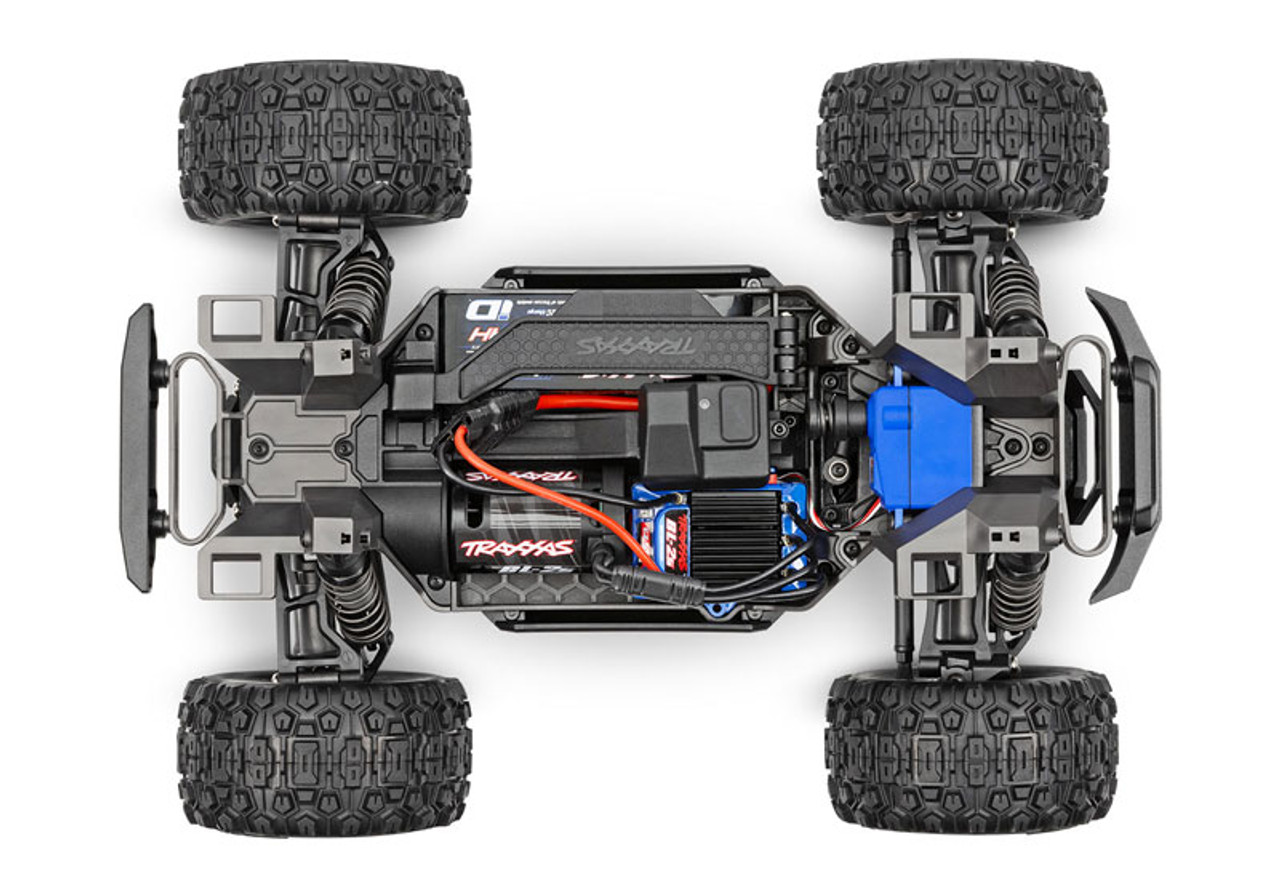

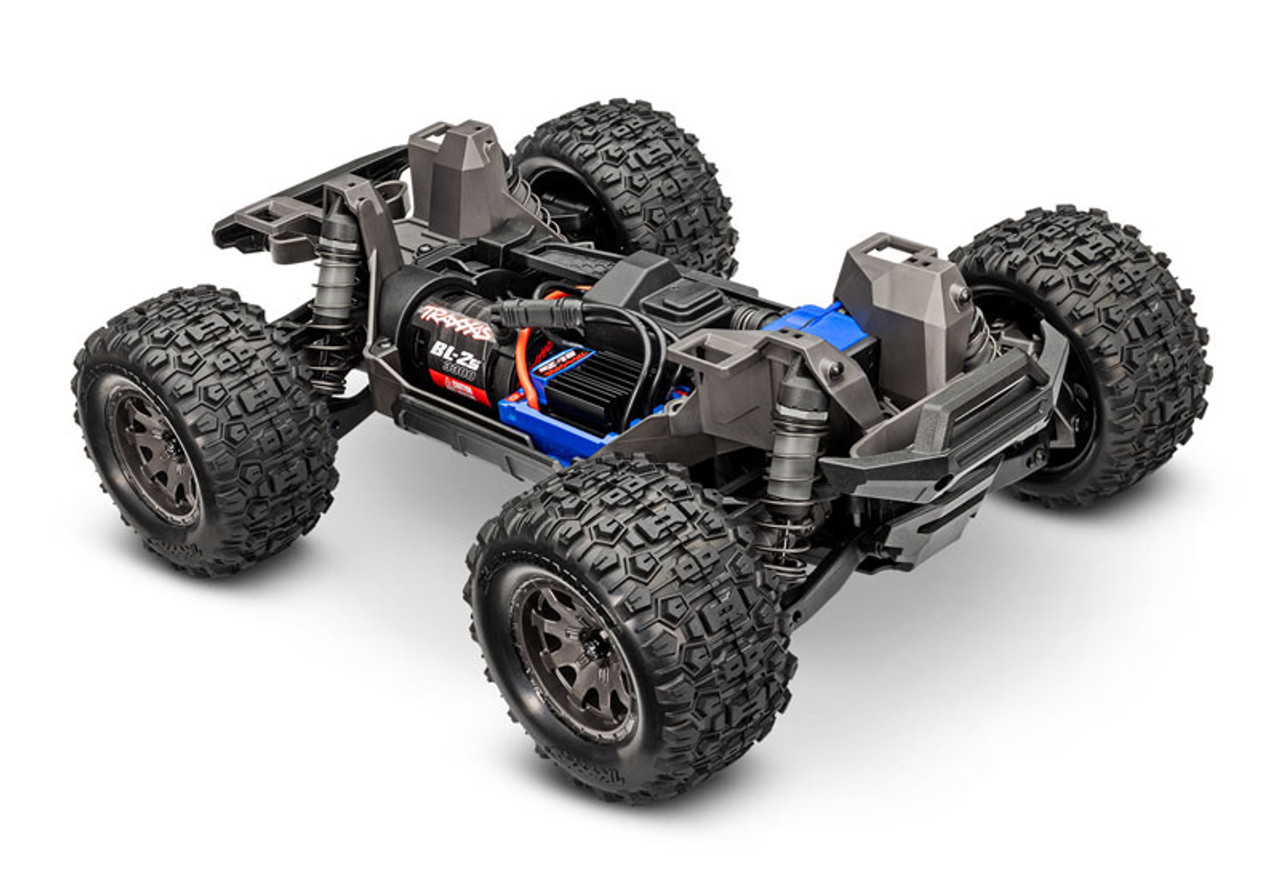

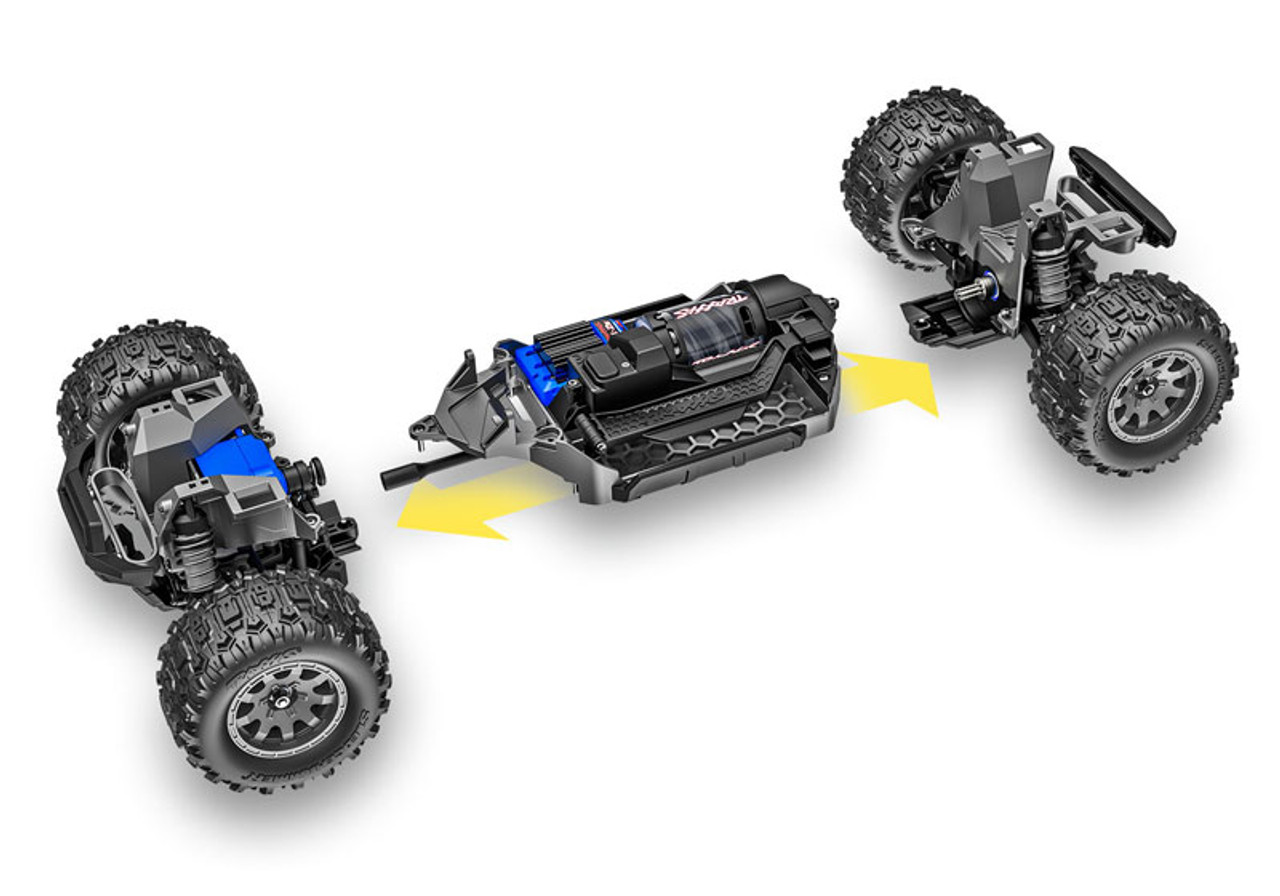

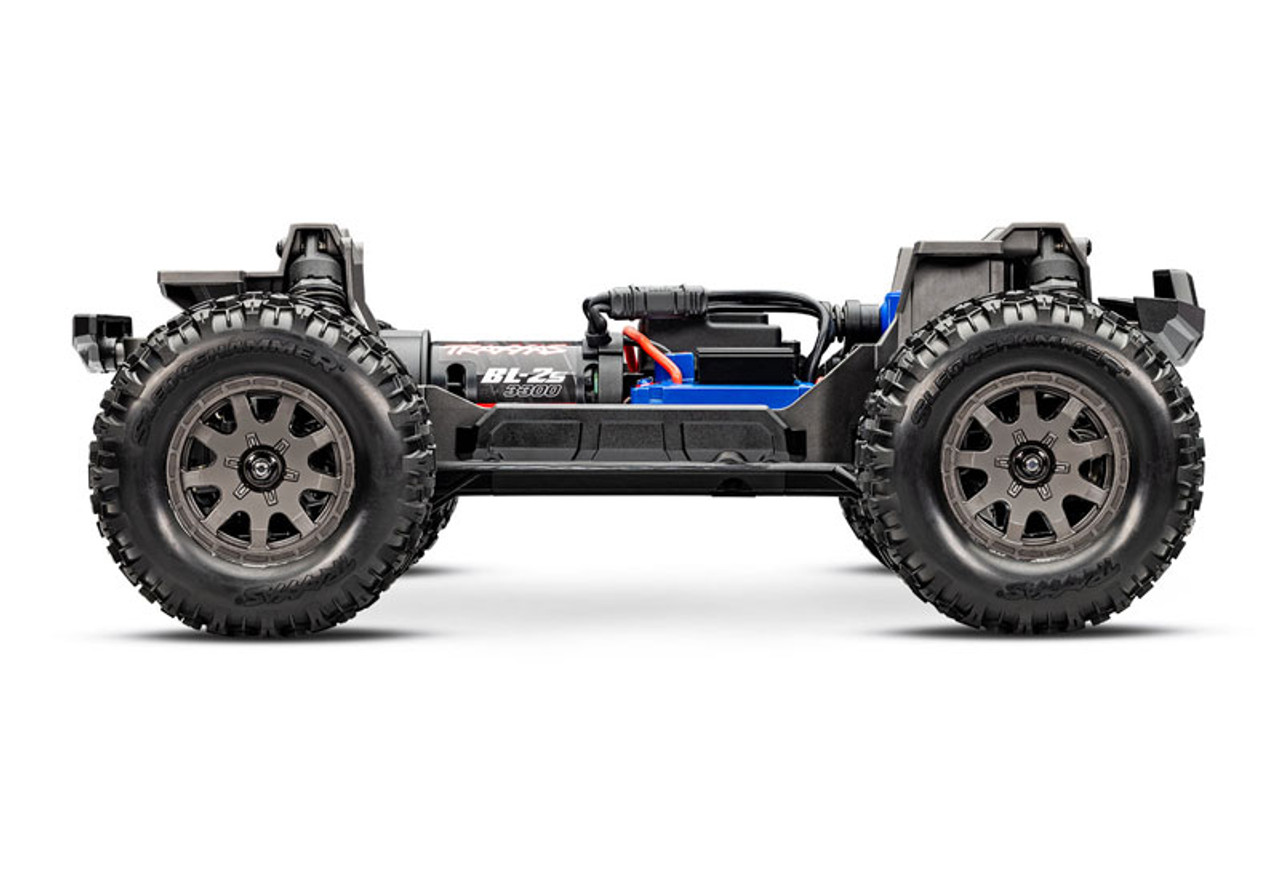

Maxx Chassis Technology
Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength, and Mini Maxx packs it all up in a supremely compact design.
Clipless Body
Mini Maxx’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.

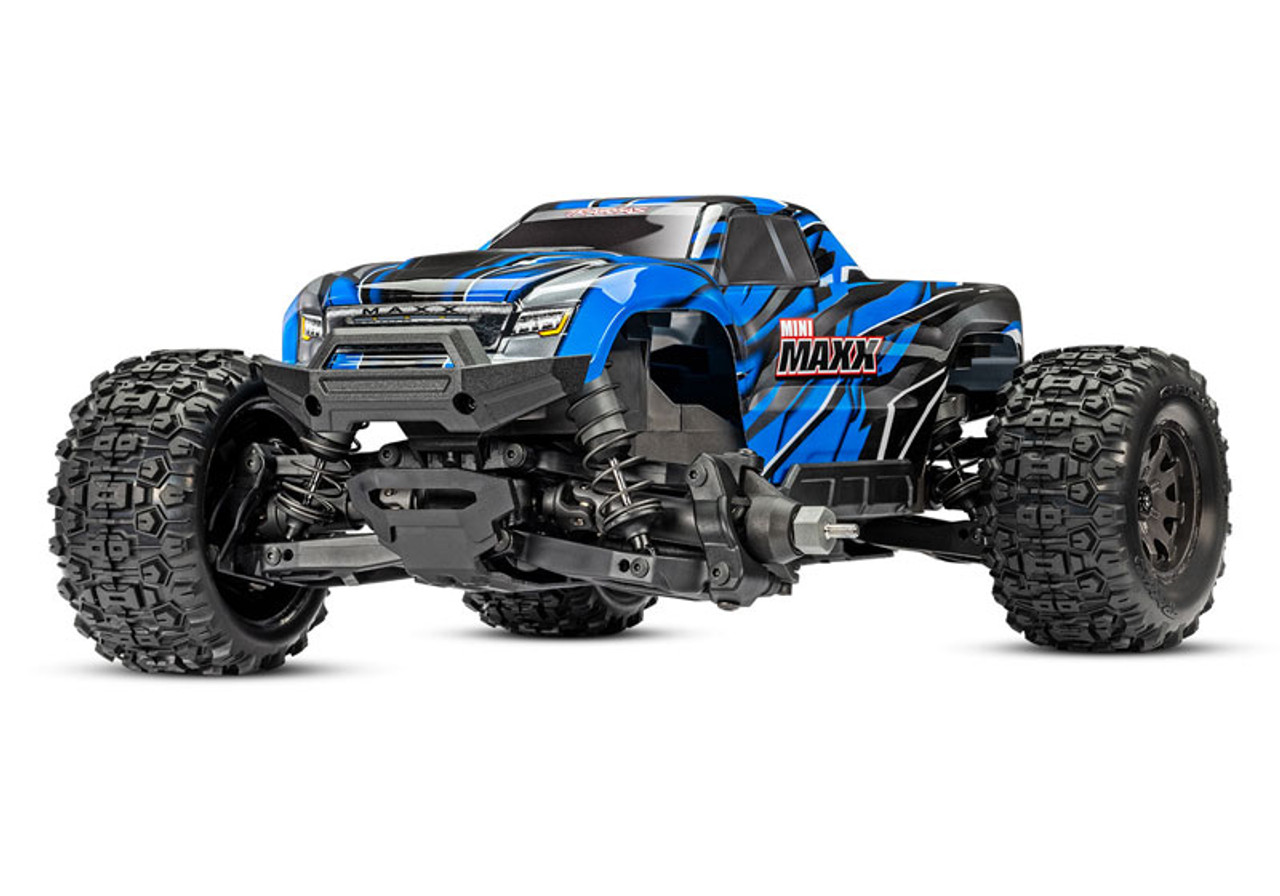

Long-Travel Suspension
1/10 scale Ultra Shocks and a long-travel independent suspension deliver WideMaxx handling and performance in a compact package. Mini Maxx’s beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.
Features
Sledgehammer Tires
New'' Sledgehammer tires are ready for action with multiple layers of biting edges for sure-footed traction. Their open-block tread design clears away mud and debris and features a heavy-duty rubber compound specially formulated to resist tearing. New 2.6'' dual-profile black wheels provide extra clearance for the suspension components and give Mini Maxx a tough, menacing appearance.
Molded Body Reinforcements
Clipless body latches are neatly integrated into molded body reinforcements that look great and protect the body. Unlike traditional posts and clips, body reinforcements spread impact forces over a wide area to minimize the risk of pull-through damage.
1/10 Scale Ultra Shocks
Mini Maxx uses the same full-size oil-filled Ultra Shocks found on Traxxas’1/10 scale monster trucks for truly bottomless suspension travel. The Ultra Shocks’ large oil capacity and rugged design soaks up big jumps and off-road abuse for smooth driving performance. They are easy to tune with a wide range of available oils, springs, and pistons.
Fixed Gear Mesh System
A fixed gear mesh system takes the guesswork out of setting your gear mesh with multiple preset gearing positions. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.
Waterproof Electronics
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.
3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Dual Bellcranks with Servo Saver
Mini Maxx’s full-size 2056 steering servo uses dual bellcranks for zero bump steer geometry and smooth turning action in the harshest conditions. Oversize components and double-shear connections make Mini Maxx unbelievably tough. A heavy-duty, cam-style servo saver guarantees precise steering response with added protection against impacts.
Heavy-Duty Suspension Arms
Double wishbone suspension arms maintain proper suspension geometry throughout the entire range of travel. Double-shear connections provide incredible strength and impact resistance. Made from Traxxas' toughest composite material, heavy-duty suspension arms resist impact damage, even in cold weather.

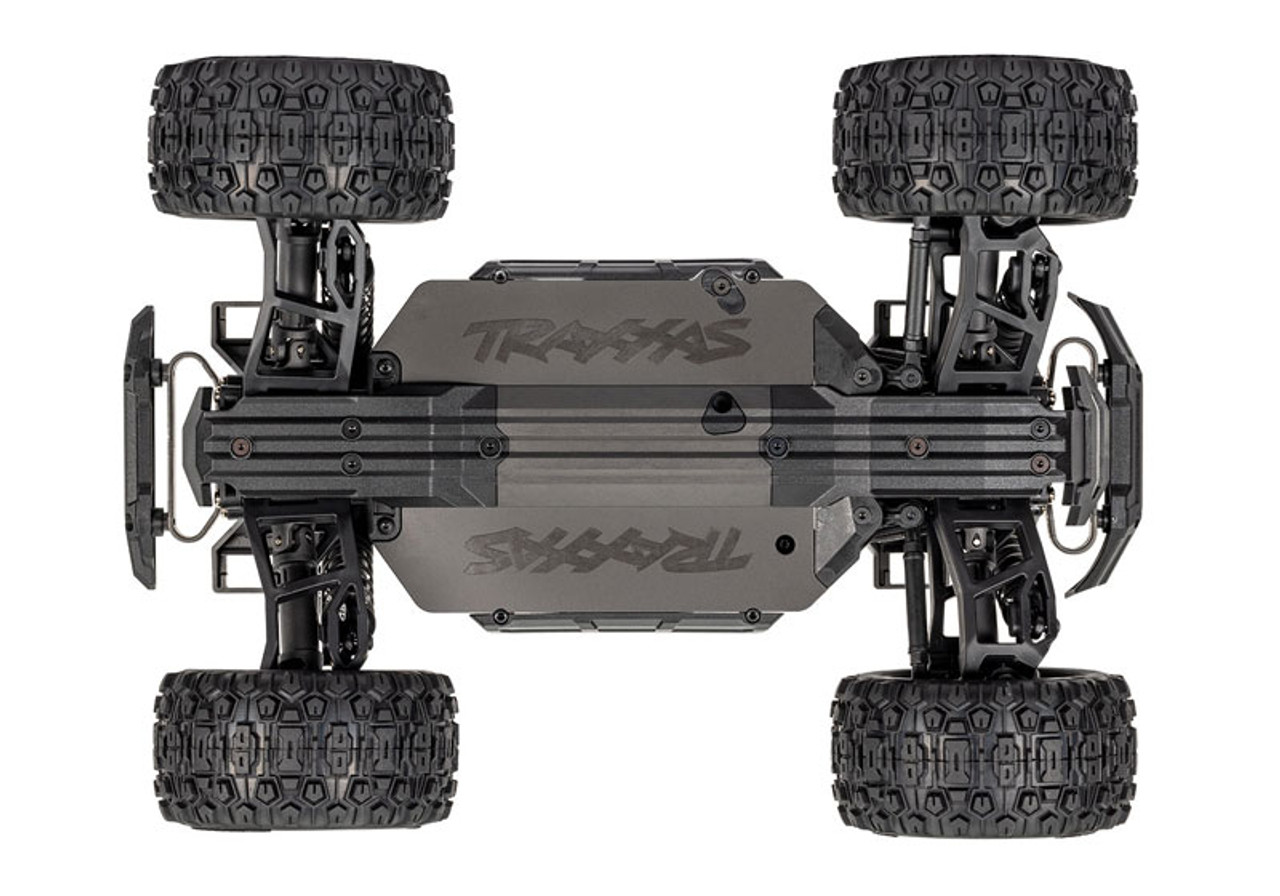

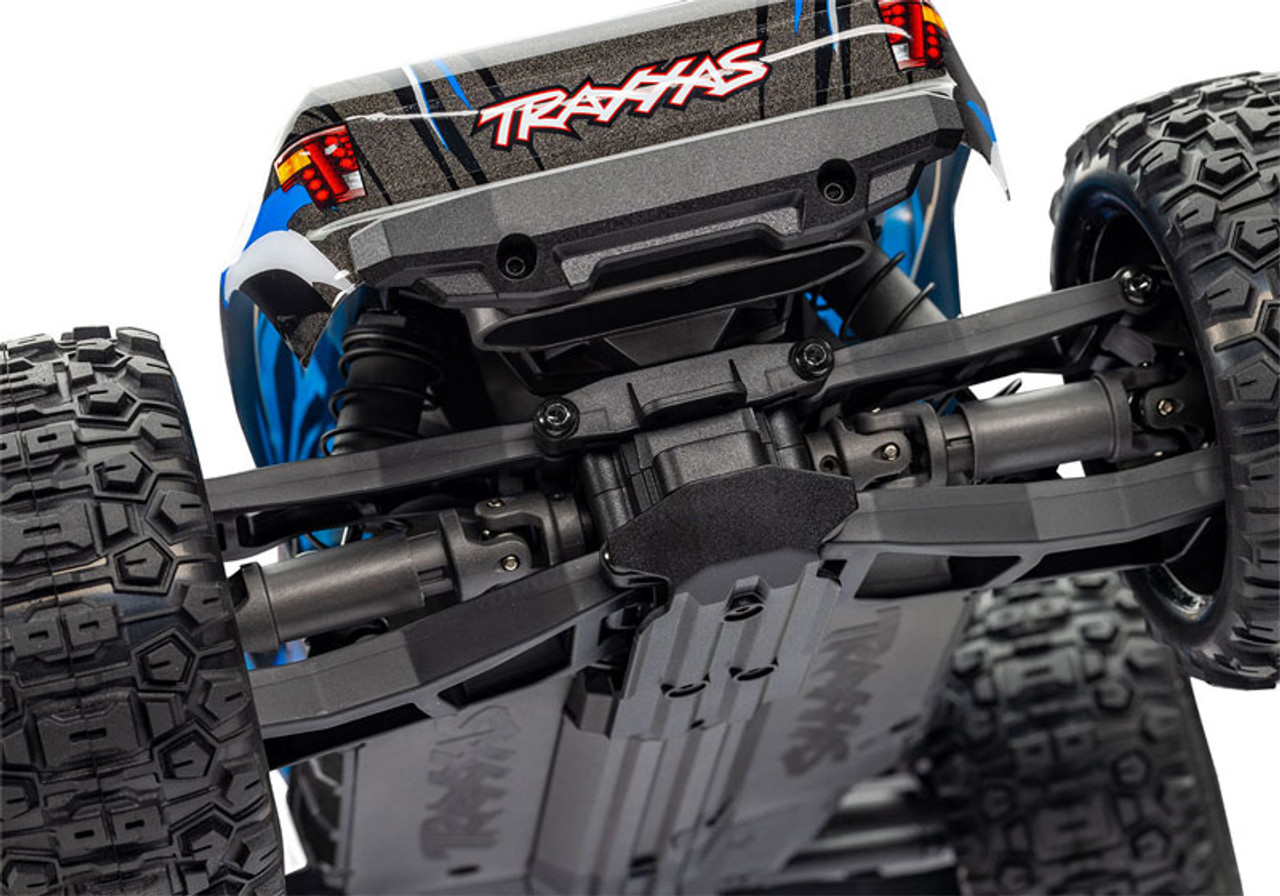

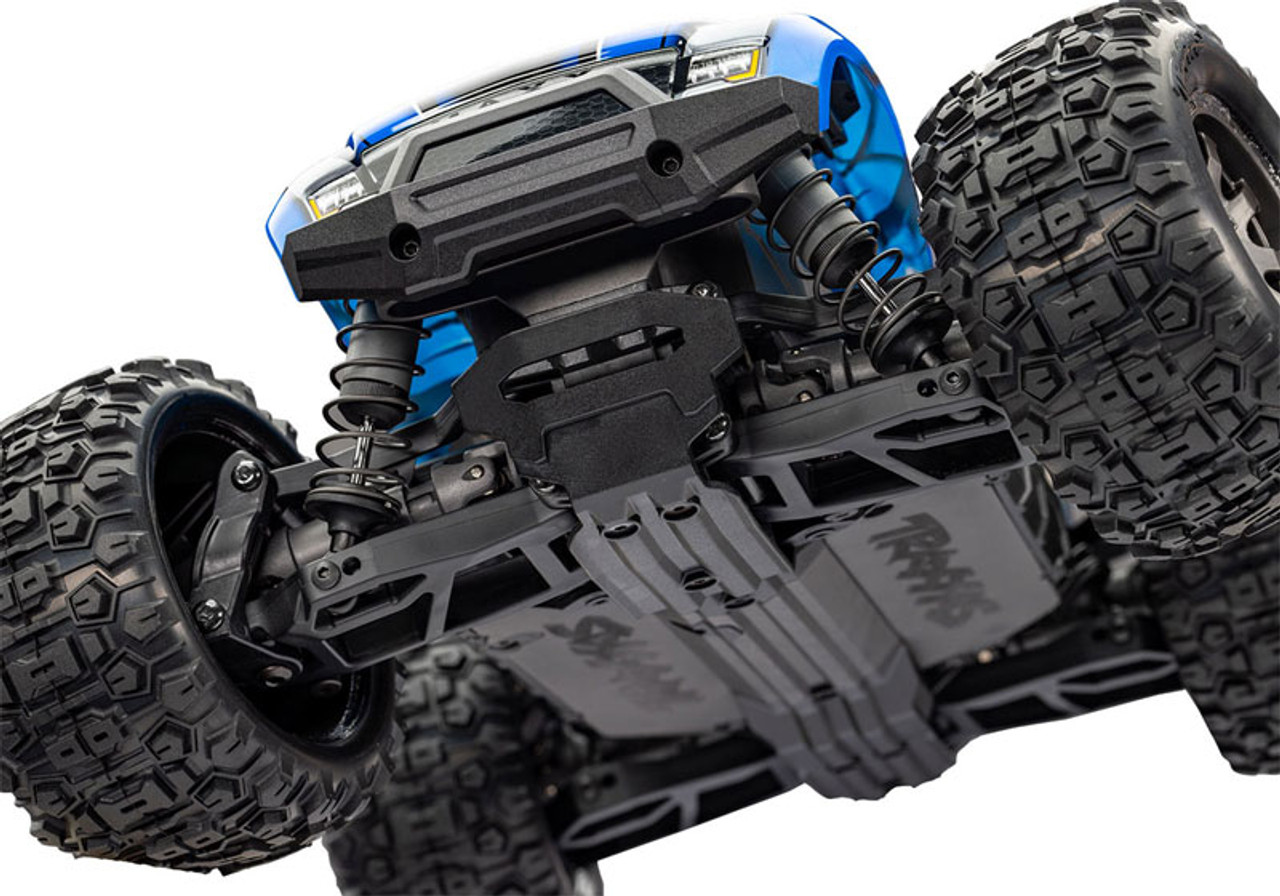

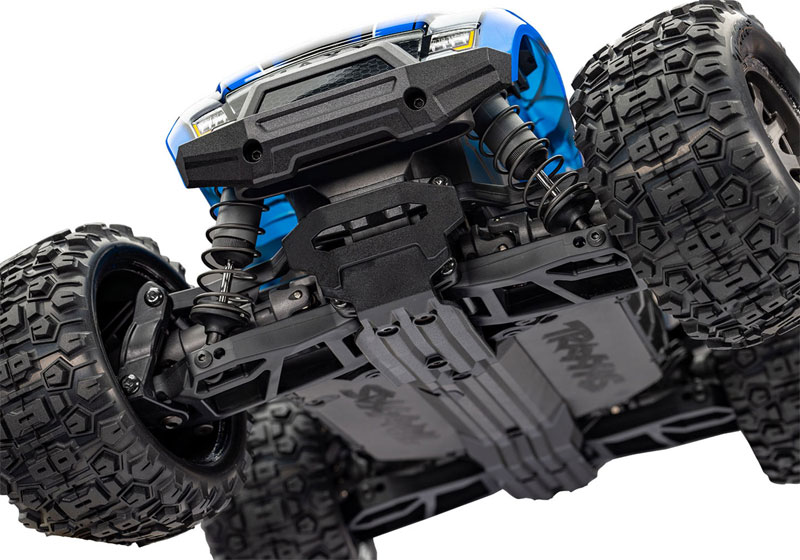

Tough Interlocking Skid Plates
Tough interlocking skid plates fit tightly into the Mini Maxx chassis to create a smooth snag-free undertray. The skid plates save wear and tear on the chassis and they’re easy to replace.

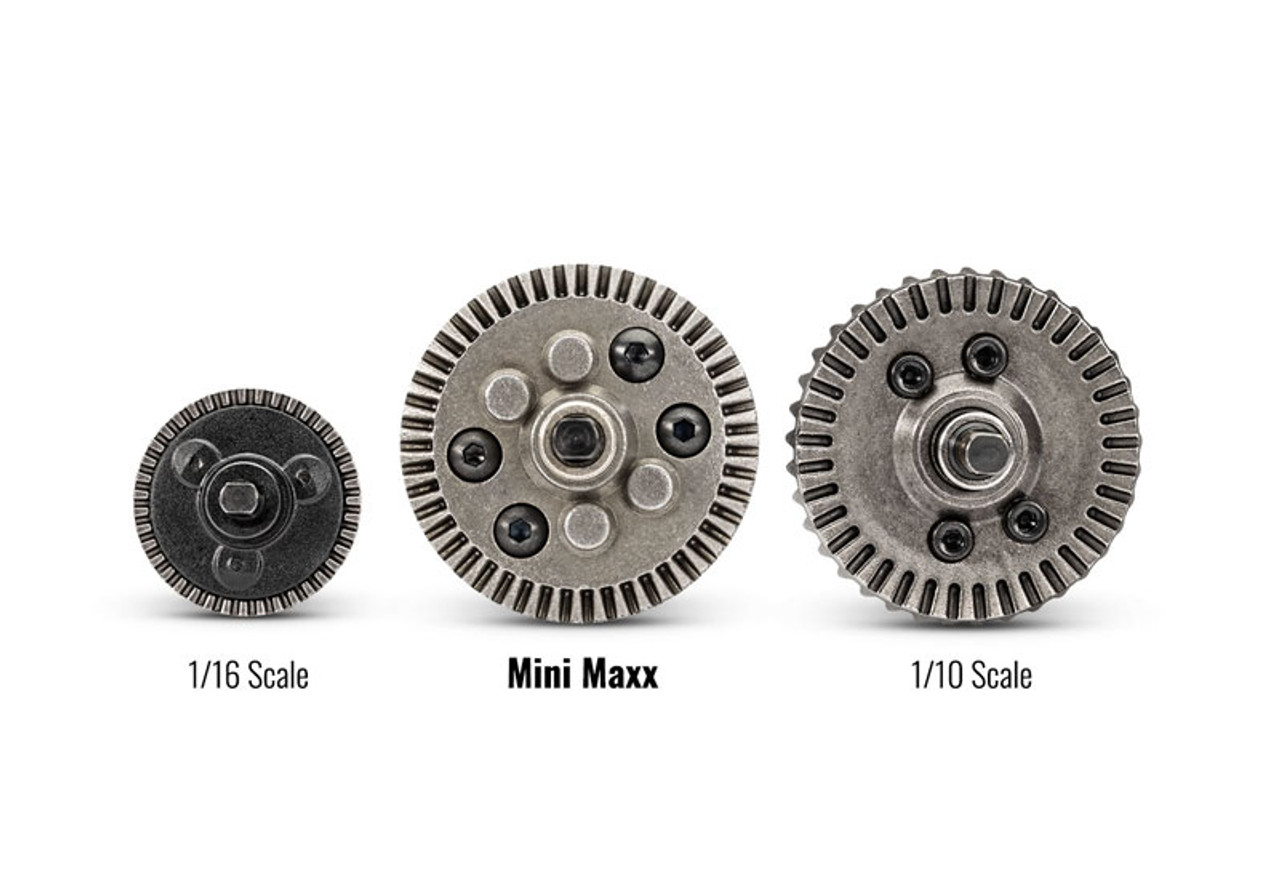

1/10 Scale Planetary Differentials
Mini Maxx's differentials are nearly twice the size of standard 1/16 scale differentials for bombproof durability. The sealed design allows you to tune the amount of locking action by varying the viscosity of the fluid inside the differentials.
*Click to See the Full Line of Parts/Accessories
Specifications
Length: 13.58 inches (345 mm)
Front Track: 9.94 inches (253 mm)
Rear Track: 9.94 inches (253 mm)
Ground Clearance: 1.06 inches (27 mm)
Weight: 3.62 pounds (1.64 kg)
Height: 5.39 inches (137 mm)
Wheelbase: 8.66 inches (220 mm)
Shock Length: 3.45 inches (88 mm)
Tire Diameter: 3.93 inches (100 mm)
Wheel Diameter: 2.1″ (53 mm) outer, 2.6″ (66 mm) inner
Speed Control: BL-2s brushless ESC
Motor (electric): BL-2s sensorless brushless (3300 Kv)
Transmission: Direct-drive
Overall Drive Ratio: 9.20:1
Differential Type: Planetary, steel gear
Gear Pitch: 32
Chassis Structure/Material: Composite modular tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: Dual-profile wheels with pre-glued Sledgehammer tires
Radio System: TQ 2.4 GHz (2-channel)
Servo: Waterproof high-torque 2056
Top Speed: 30+ mph
Skill Level: 1

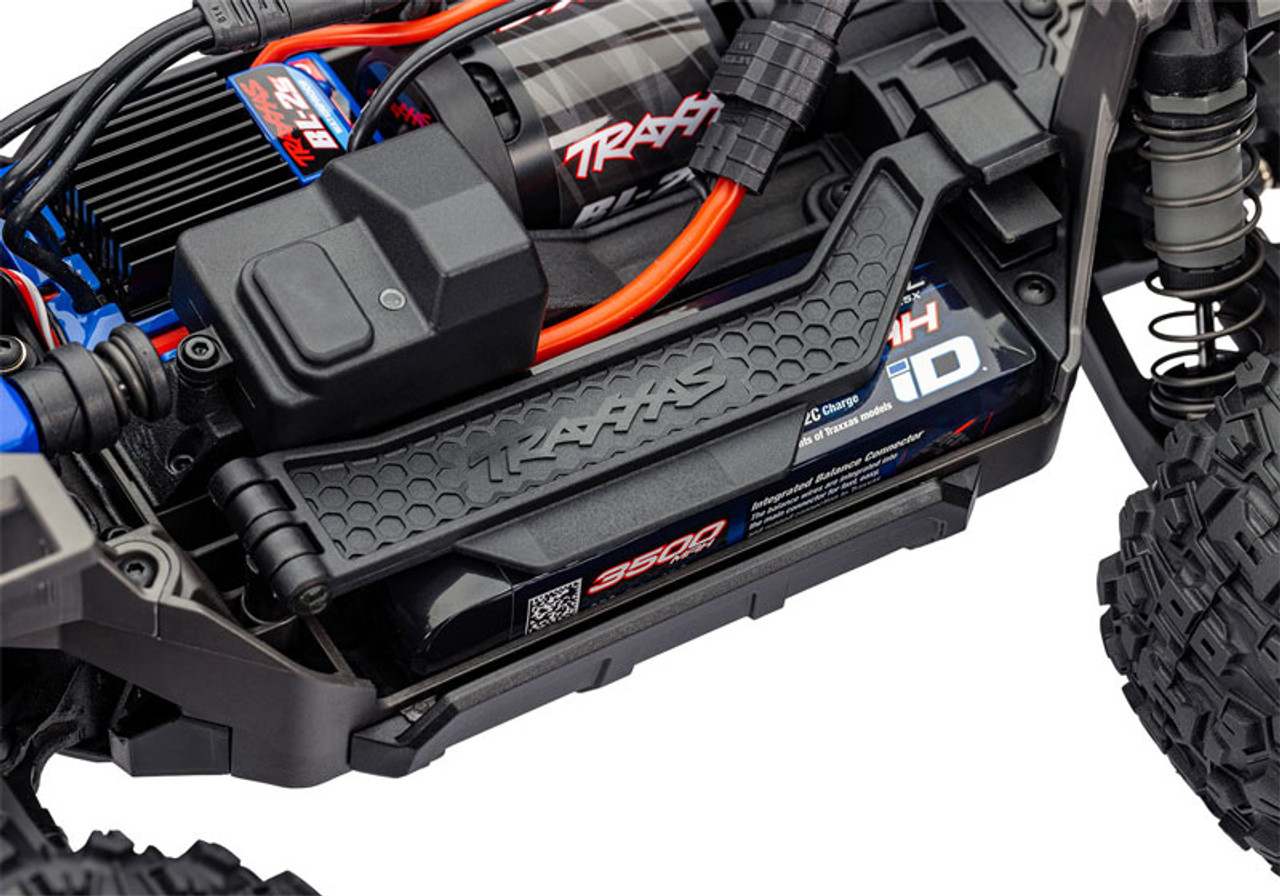

Battery Tray: 113 mm L x 41 mm W x 22 mm H
Requires
(4) AA Batteries for Transmitter
USB-C Charging Cable and Block**
**TRA #2920 - Full charging output requires a 45 watt or greater power supply like the Traxxas 2912 and high-quality USB-C cable like the Traxxas 2916.
